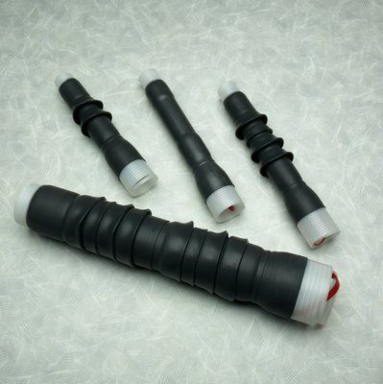

3M 7642-S-2-2 3M Cold Shrink QT-III Silicone Rubber Termination 7642-S-2-2, CN and JCN Cable, 5-15 kV, 0.64-1.08 in (16,3-27,4 mm) Cable Insul. O.D., 1 termination/kit

3M Cold Shrink QT-III Silicone Rubber Termination 7642-S-2-2, CN and JCN Cable, 5-15 kV, 0.64-1.08 in (16,3-27,4 mm) Cable Insul. O.D., 1 termination/kit
  • MPN: 7642-S-2-2
  • UPC: 054007420132
  • PPN: MMM-7642-S-2-2

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$483.34/ EA

Description

3M Cold Shrink QT-III Silicone Rubber Termination 7642-S-2-2, CN and JCN Cable, 5-15 kV, 0.64-1.08 in (16,3-27,4 mm) Cable Insul. O.D., 1 termination/kit

Specifications

Specifications

3M ID
80610836704
BIL
110 kV
Breakout Boot
No
Cable Insulation Outside Diameter Range (metric)
16.3-27.4 mm
Conductor Size by Voltage
(5 kV) 8-4/0 AWG, (8 kV) 8-4/0 AWG, (15 kV) 8-4/0 AWG
Family
QT-III
Insulation Level
100%, 133%
Maximum Installed Length
9.80 in
Number of Conductors
1
Product Series
7640-S
RoHS EU Comments
Contact 3M for information
Trademark
3M
Voltage Application
Medium Voltage
Agency ApprovalsIEEE
Brand3M™
Cable Insulation Outside Diameter Range0.64-1.08 in
Cable TypeCompact/Solid, Stranded
Conductor Sizes2 AWG
Indoor/OutdoorOutdoor
Insulation RejacketingRoHS 2011/65/EU Compliant, Yes
Maximum Installed Length (metric)24.89 cm
Number of Skirts2
RoHS 2011/65/EU CompliantUndetermined
Shielding TypeConcentric Neutral (CN), Jacketed Concentric Neutral (JCN)
Voltage15 kV
