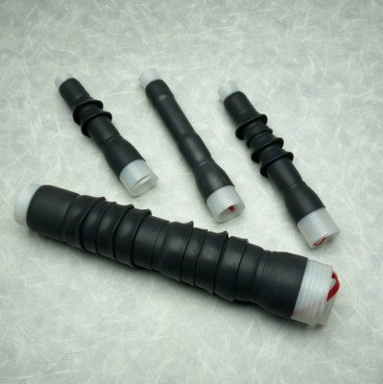

3M 7642-S-2-22 Cold Shrink QT-III Termination, 5-15 kV, 0.64-1.08 Inch O.D., 2/0 AWG
- MPN: 7642-S-2-22
- UPC: 054007424833
- PPN: MMM-7642-S-2-22
CAD
$488.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III Termination, 5-15 kV, 0.64-1.08 Inch O.D., 2/0 AWG
Specifications
Key Specifications
- 3M ID
- 80610922868
- BIL
- 110 kV
- Cable Insulation Outside Diameter Range (metric)
- 16.3-27.4 mm
- Conductor Sizes
- 2/0 AWG
- Indoor/Outdoor
- Outdoor
- Insulation Rejacketing
- Yes
- Maximum Installed Length (metric)
- 24.89 cm
- Product Series
- 7640-S
- RoHS EU Comments
- Contact 3M for information
- Trademark
- 3M
Agency ApprovalsIEEE
Cable Insulation Outside Diameter Range0.64-1.08 in
Cable TypeCompact/Solid, Stranded
FamilyQT-III
Insulation Level100%, 133%
Maximum Installed Length9.80 in
Number of Skirts2
RoHS 2011/65/EU CompliantUndetermined
Shielding TypeConcentric Neutral (CN), Jacketed Concentric Neutral (JCN)
Voltage15 kV
