3M 8460 Cold Shrink Shield Adapter Kit, 600 Amp, 15-35 kV, 0.83-1.64 Inch Cable Size
- MPN: 8460
- UPC: 054007414582
- PPN: MMM-8460
CAD
$133.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

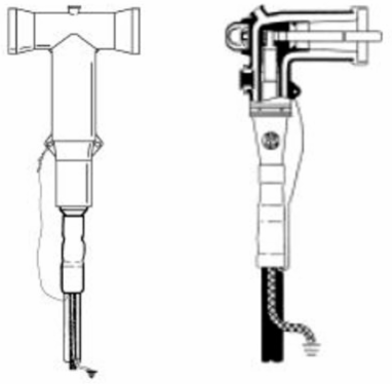

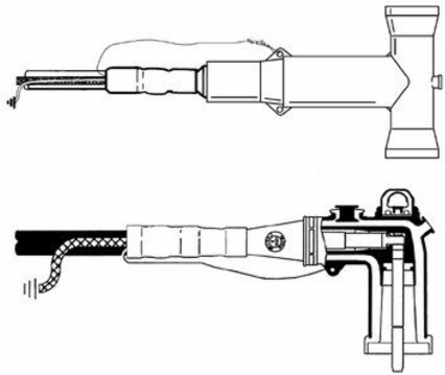

Cold Shrink Shield Adapter Kit, 600 Amp, 15-35 kV, 0.83-1.64 Inch Cable Size
Specifications
Key Specifications
| 3M ID | 80610830764 |
|---|---|
| Cable Size by Voltage | (15 kV) 2 AWG-250 kcmil (35-150 mm²), (25 kV) 2 AWG-250 kcmil (35-150 mm²), (35 kV) 2-1/0 AWG (35-60 mm²), (5/8 kV) 1/0 AWG-350 kcmil (50-200 mm²) |
| Color | Black |
| Family | 3M™ Shield Adapter Kit |
| Jacket Outside Diameter Range | 0.83-1.64 in |
| RoHS EU Comments | Contact 3M for information |
| Shielding Type | Tape, Wire, Unishield® |
| Cable Accessory Products | Sealing and Grounding Kits |
|---|---|
| Cable Voltage Rating | 15 kV, 25 kV, 35 kV, 5/8 kV |
| Conductor Sizes | 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG |
| Jacket Outside Diameter | 0.83 to 1.64 Inch |
| RoHS 2011/65/EU Compliant | Undetermined |
| Separable Connector Type | Dead Break Elbows |
| Trademark | 3M |
