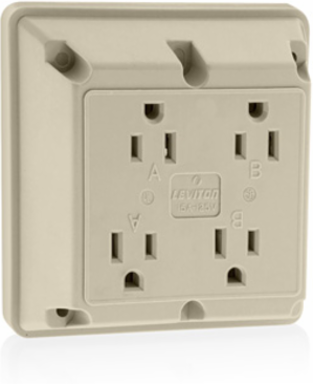

Leviton 1254-I 15 Amp 4-in-1 Quadruplex Receptacle Outlet, Industrial Grade, NEMA 5-15R, Ivory
- MPN: 1254-I
- UPC: 078477830437
- PPN: LEV-1254-I
CAD
$47.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
4-in-1 Quadruplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Ivory
Features
- Code Compliant - Allows you to increase the number of receptacles in your facility without having to pull new wires
- Durable - Impact and chemical resistant nylon cover and base
- Easy Installation - Termination anchor holes for easy conductor wiring
- Reliable - 10-Year Limited Warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 WD-6
- UL498
- File E13399
CSA C22.2 No. 42File 152105
NOM057
Warranty10-Year Limited
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Line Contacts
- Phosphor Bronze
- Strap Material
- Galvanized Steel with Riveted Ground Contacts
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Termination
- Side Wire
ColorIvory
Grounding ScrewPlated Steel
Product IDRatings are permanently marked on device
Terminal Accom.14-12 AWG
Terminal ScrewsPlated Brass
Torque Range12-14 inch pounds
Mechanical Specifications
- Brand
- 4-in-1
- Device Type
- Quadruplex Receptacle Outlet
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-12 AWG
- Termination
- Side Wire
ColorIvory
NEMA5-15R
Screw Terminal Torque10-12 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Torque Range12-14 inch pounds
Product Features
- Grade
- Heavy-Duty Industrial Specification Grade
Environmental Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Grounding Screw
- Plated Steel
- Operating Temperature
- -40°C to 60°C
- Terminal Screws
- Plated Brass
ColorIvory
FlammabilityRated V-2 per UL 94
Line ContactsPhosphor Bronze
Strap MaterialGalvanized Steel with Riveted Ground Contacts
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Grounding
- Grounding
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
FlammabilityRated V-2 per UL 94
Operating Temperature-40°C to 60°C
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- Amperage
- 15 A
- Current Limiting
- Full Rated Current
- Grounding
- Grounding
- Temperature Rise
- Max 30C after 50 cycles OL at 150 percent rated current
- Wire
- 3
At Rated Voltage1/2 HP
Dielectric VoltageWithstands 2000V per UL498
Pole2
Voltage125 VAC
