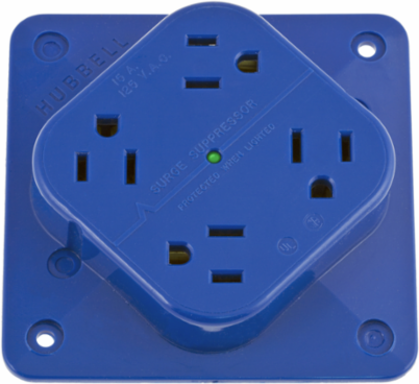

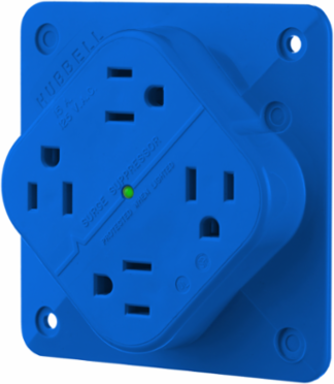

Hubbell Wiring Device-Kellems HBL415S 4-PLEX Surge Suppression Receptacle 15A 125V, 3-Wire, 4.30 Inch x 0.92 Inch
- MPN: HBL415S
- UPC: 783585017853
- PPN: HBL-HBL415S
- UNSPSC: 39121610
CAD
$231.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-PLEX Surge Suppression Receptacle, 2-Pole 3-Wire, 15A 125V, 5-15R
Features
- Surge supression with lights, 80 joules/6500A per mode
- Anchor hole and loop feature secures solid wire for fast, easy terminations
- Triple wipe contacts
- Easily accessible break-off tabs for split wiring
- Three conductors energize all four outlets
Documentation & Downloads
Specifications
Additional
| Amperage | 15 A |
|---|---|
| Number Of Poles | 2-Pole |
| Horsepower Rating | 0.5 HP |
| Phase | Single Phase |
| Response Time | 5 ns |
| Surge Suppression Current | 6500 A per mode |
| Wiring | 3-Wire |
| Weight | 0.35 lb. |
| Certifications | UL Listed (UL498), CSA Certified (22.2 No. 42), NEMA WD-6 Compliant |
| Country of Origin | US |
| Indicator Type | LED Only |
| Voltage | 125 V |
|---|---|
| NEMA Rating | 5-15R |
| Frequency Rating | 60 Hz |
| Wire Size Range | #14 AWG to #12 AWG |
| Surge Suppression Energy | 80 joules |
| Operating Temperature | -40 C to 75 C |
| Dimensions | 4.30 in x 0.92 in x 4.30 in |
| Material | Polycarbonate |
| Color | Blue |
| Connectivity | Terminal Screws |
