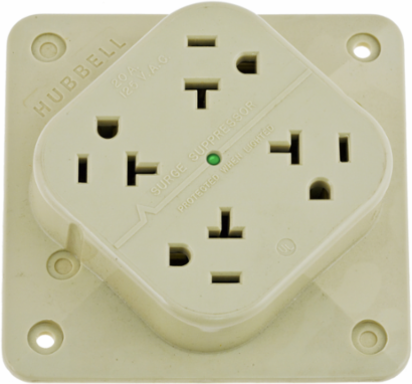

Hubbell Wiring Device-Kellems HBL420IS 4-PLEX Surge Suppression Receptacle 20A 125V 3-Wire Grounding
- MPN: HBL420IS
- UPC: 783585017884
- PPN: HBL-HBL420IS
- UNSPSC: 39121610
CAD
$244.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-PLEX, Surge Suppression Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R
Features
- Surge supression with lights, 80 joules/6500A per mode
- Anchor hole and loop feature secures solid wire for fast, easy terminations
- Triple wipe contacts
- Easily accessible break-off tabs for split wiring
- Three conductors energize all four outlets
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Current / Amperage Rating
- 20 A
- Height
- 4.30 in
- Industry Standard(s)
- Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186;NEMA® WD-6 Compliant
- Performance
- Electrical: Current Interrupting: Capable of withstanding a fault level of 1000A, per UL498;Dielectric Voltage: Withstands 2,000V minimum;Mechanical: Product Identification: Ratings are a permanent part of the device;Terminal Accommodation: #12 AWG stranded or solid copper conductor only;Terminal Identification: Terminals identified in accordance with UL 498 and CSA;Environmental: Flammability: UL 94 V-2;Operating Temperatures: Maximum continuous 75°C;minimum -40°C (w/o impact)
- Application
- 4-Plex with LED
- Frequency Rating
- 60 Hz
- Outlet
- Straight Blade
- Response Time
- 5
- Standard
- Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186;NEMA® WD-6 Compliant
- Voltage Rating Description
- 125 V
- Width
- 0.92 in
- General Literature Asset 1 Display Text
- SpikeShield® Surge Protective Devices
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Wire Size
- #12 AWG
- Description - Invoice
- 4-PLEX SPD RCPT,20A 125V, 5-20R IV
- Harmonization Code
- 8536308000
- MSDS Flag
- No
- Sub Class Code
- A44A420
- Current Rating
- 20 A
- Material
- Polycarbonate
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.3 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Case Weight
- 10.500 lb.
- Lowest Level UOM
- Each
ColorIvory
Dimensions4.30 in x 0.92 in x 4.30 in
Horsepower - Maximum1.00
Length4.30 in
Amperage Rating20 A
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
PhaseSingle Phase
Size4.30 in x 0.92 in x 4.30 in
Voltage Rating125 V
Weight0.35 lb.
Engineering Drawing 1 Display TextHBL420IS AutoCAD Drawing
ConnectivityTerminal Screws
Display SizeStandard
Number Of Poles2-Pole
StyleSurge Suppression
Class CodeA44
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number420IS
Material - Mounting HardwareMounting Screws
Indicator(s) TypeLED Only
Series4-Outlet Receptacle
BOX SIZE5.300x6.100x6.500 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585017884
Case - Total Units30 EA
Each - Pack DescriptionEach
NAICS Code335999E509
