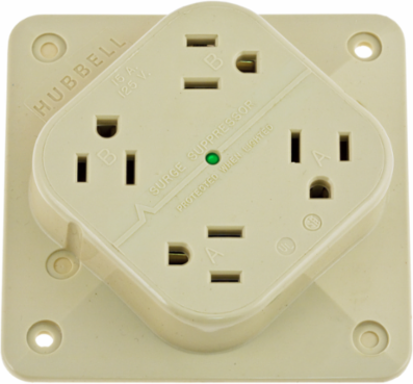

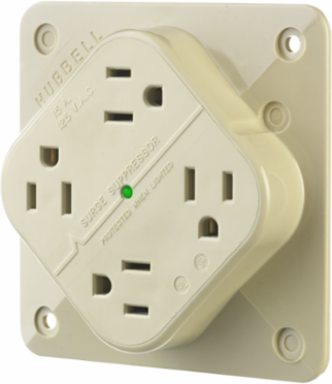

Hubbell Wiring Device-Kellems HBL415IS 4-PLEX Surge Suppression Receptacle, 15A 125V, 2-Pole, 3-Wire
- MPN: HBL415IS
- UPC: 783585017860
- PPN: HBL-HBL415IS
- UNSPSC: 39121610
CAD
$231.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-PLEX Surge Suppression Receptacle, 2-Pole 3-Wire, 15A 125V, 5-15R
Features
- Surge supression with lights, 80 joules/6500A per mode
- Anchor hole and loop feature secures solid wire for fast, easy terminations
- Triple wipe contacts
- Easily accessible break-off tabs for split wiring
- Three conductors energize all four outlets
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Current / Amperage Rating | 15 A |
| Height | 4.30 in |
| Industry Standard(s) | Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186;NEMA® WD-6 Compliant |
| Performance | Electrical - Current Interrupting - Capable of withstanding a fault level of 1000A, per UL498;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-12 AWG stranded or solid copper conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Application | 4-Plex with LED |
| Frequency Rating | 60 Hz |
| Outlet | Straight Blade |
| Response Time | 5 |
| Standard | Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186;NEMA® WD-6 Compliant |
| Voltage Rating Description | 125 V |
| Width | 0.92 in |
| General Literature Asset 1 Display Text | SpikeShield® Surge Protective Devices |
| Dielectric Strength | Withstands 2,000V minimum |
| Nema Rating | 5-15R |
| Number Of Wires | 3-Wire |
| Class Code | A44 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 415IS |
| Material - Mounting Hardware | Mounting Screws |
| Indicator(s) Type | LED Only |
| Series | 4-Outlet Receptacle |
| BOX SIZE | 5.125x6.245x6.245 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585017860 |
| Case - Total Units | 30 EA |
| Each - Pack Description | Each |
| NAICS Code | 335999E509 |
| Color | Ivory |
|---|---|
| Dimensions | 4.30 in x 0.92 in x 4.30 in |
| Horsepower - Maximum | 1.00 |
| Length | 4.30 in |
| Amperage Rating | 15 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Phase | Single Phase |
| Size | 4.30 in x 0.92 in x 4.30 in |
| Voltage Rating | 125 V |
| Weight | 0.35 lb. |
| Engineering Drawing 1 Display Text | HBL415IS AutoCAD Drawing |
| Connectivity | Terminal Screws |
| Display Size | Standard |
| Number Of Poles | 2-Pole |
| Wire Size | #14 AWG to #12 AWG |
| Description - Invoice | 4-PLEX SPD RCPT, 15A 125V, 5-15R, IV |
| Harmonization Code | 8536308000 |
| MSDS Flag | No |
| Sub Class Code | A44A420 |
| Current Rating | 15 A |
| Material | Polycarbonate |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 5.3 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| Case Weight | 10.500 lb. |
| Lowest Level UOM | Each |
