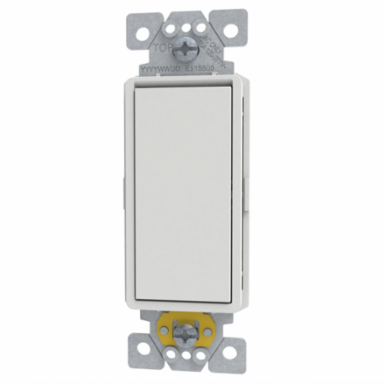

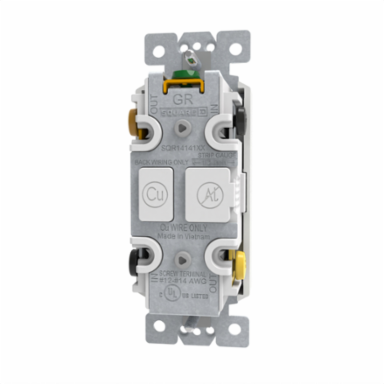

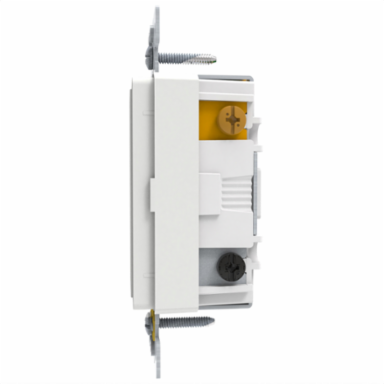

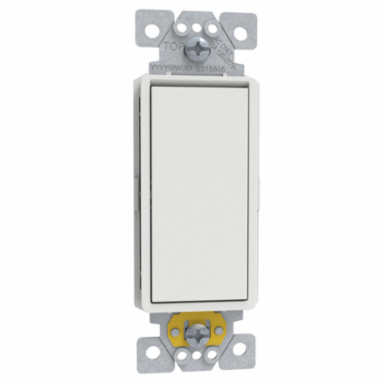

Schneider Electric SQR14141WH Switch, X Series, 15A, single pole, 4 way, white
Schneider Electric SQR14141WH Switch, X Series, 15A, single pole, 4 way, white
- MPN: SQR14141WH
- PPN: SCH-SQR14141WH
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$17.65/ EA
Description
The Square D X Series 15A Single-Pole Switch Module with side wire clamps (with white rocker cover plate) allows you to swap out faceplates quickly and easily without removing the switch and rewiring. The rated operational voltage of this switch is 120V and 277V. Its unique patented switch module is designed to support the swap out of the color rocker cover plate that easily snaps into place for a modern, flush facing finish to your walls. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This device is compatible with the rocker plate, so that the personalization of your interior design with many styles of décor is possible. It supports upgrading the color or design of the switch after initial installation without removing the switch from the wall. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. The connection is screw terminals.
Specifications
Physical Attributes
- Color
- White
- Main Color Tint
- white
Color Tintwhite
Complementary Attributes
- Ie Rated Operational Current Ac
- 15 A
Ue Rated Operational Voltage120 V
Important Information Attributes
- X Main Color Tint
- white
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Actuator
- rocker
- Device Application
- control
- Energy Efficiency Optimized
- False
- Material
- plastic: strap
- Network Frequency
- 60 Hz
- Number Of Gangs
- 1 gang
- Number Of Poles
- 1
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- Square D X Series
- Surface Finish
- Matte
- Switch Function
- 4-way
- Color Tint
- white
- Connections Terminals
- phase and neutral 2 screw terminal AWG 14...AWG 12) copper
- Warranty In Months
- 24
- Offer Owner Code
- 190785
- Certificate Agency
- cULus
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Aesthetic NameX Series
Earth Circuitself earthing
Market Segmentcommercial
Mounting Modeby screws
Network TypeAC
Number Of Modules1
Number Of Rocker1
Product Or Component Typeswitch
ReturnabilityYes
Sustainable PackagingNo
Targeted Channeldistributor
Main Color Tintwhite
Ie Rated Operational Current Ac15 A
Ac Current Rating15 A
Pn1
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- switch
Contractual Warranty Attributes
- Warranty Period
- 2 years
Warranty2 years
Specifications
- Country of Origin
- Vietnam
Overview Attributes
- Device Presentation
- mechanism with fixing frame
