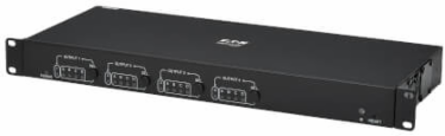

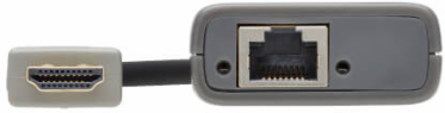

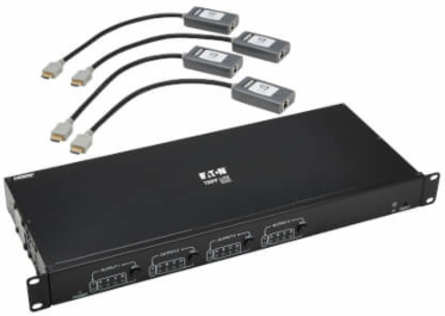

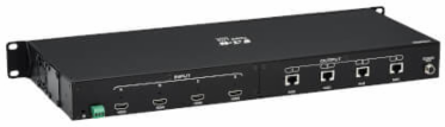

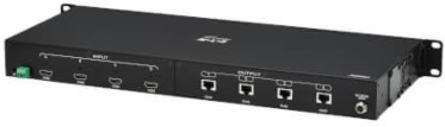

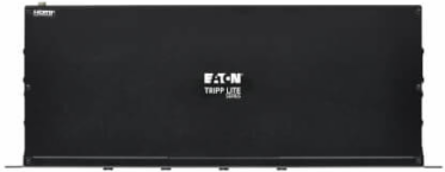

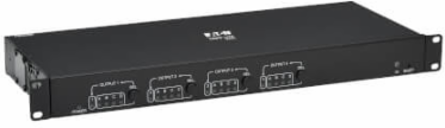

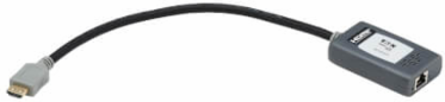

Tripp Lite B127A4X4BH4PH 4x4 HDMI over Cat6 Matrix Switch Kit, Switch/4x Pigtail Receivers - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA

  • MPN: B127A4X4BH4PH
  • UPC: 037332269607
  • PPN: TRP-B127A-4X4-BH4PH

CAD

$2148.89

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

4x4 HDMI over Cat6 Matrix Switch Kit, Switch/4x Pigtail Receivers - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA

Features

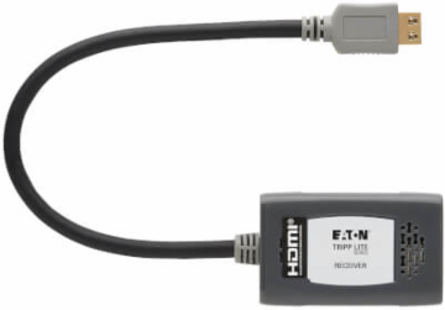

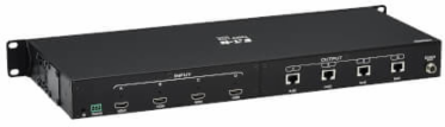

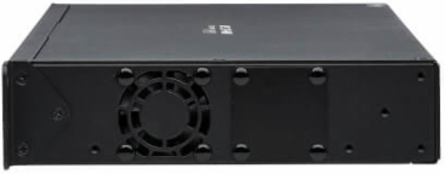

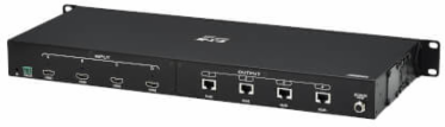

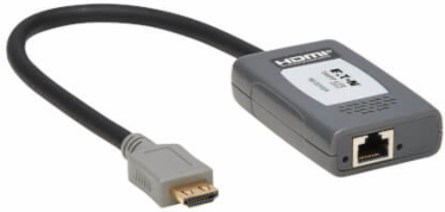

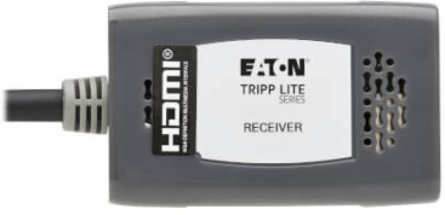

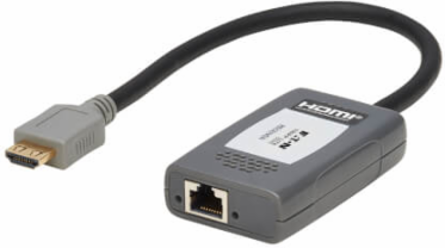

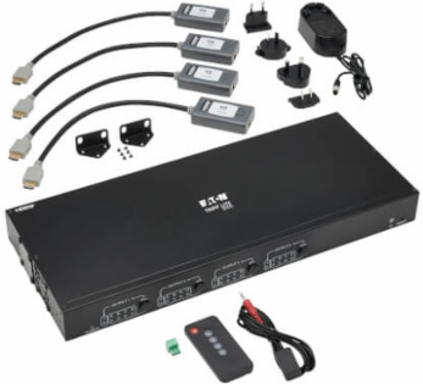

  • 4x4 matrix switch and four pigtail receivers included
  • IR adapter cable and IR remote control included
  • RS-232 adapter included
  • External power supply included (Input: 100–240V, 50/60 Hz, 1.5A; Output: 24V 2A)
  • Four international plug adapters included (Australia, Europe, U.S., U.K.)
  • Mounting hardware included

Documentation & Downloads

Specifications

Performance

Color Depth36-bit Deep Color
Transmission Distance230 ft
TechnologyCat5/5e; Cat6; HDMI; PoC
Video OutputHDMI (Female); RJ45 (Female)
HDCP1.4; 2.2
Recommended Cable24 AWG Cat6 UTP
Receiver Power SourcePower Over Cable
Storage Temperature5° to 122°F (-15° to 50°C)
Chroma Subsampling4:4:4
Input x Output4 x 4
Video InputHDMI (Female)
Monitors Supported4
Port SelectionPushbutton; Remote Selector
Power Output24V 2A
Operating Temperature32° to 104°F (0° to 40°C)
Relative Humidity0–85% non-condensing

Material

Housing MaterialMetal
ColorBlack

Reference

Warranty1-year limited

Dimensions

Form FactorBox; Pigtail; Rackmount; Tabletop; Wall-mount
Usable Rack Space1U
