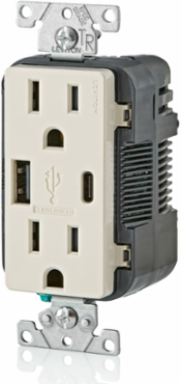

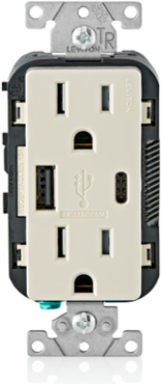

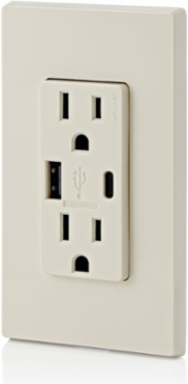

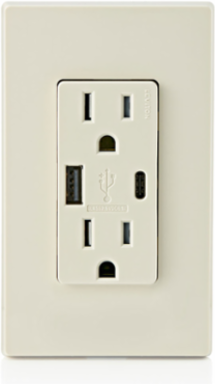

Leviton T5633-T USB Type A/Type-C Wall Charger with 15A Tamper-Resistant Outlet, 5.1A, Light Almond
- MPN: T5633-T
- UPC: 078477841266
- PPN: LEV-T5633-T
CAD
$60.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 25+W (5.1 Amp), Type A and Type-C USB In Wall Charger, Grounding, Side Wired & Back Wired - Light Almond
Features
- Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more
- Smart chip technology recognizes and optimizes the charging requirements of individual devices including Apple, Samsung, Nexus, Pixel and more
- One Type A Port and one Type-C Port; combined total of 5.1A of charging power - Type-C Port can charge maximum 3 Amps @ 5V - Type A Port can charge maximum 2.4 Amps @ 5V
- Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects
- USB Ports tested to withstand over 10,000 insertions
- Charges most Type A and Type-C USB powered devices
- Type-C Port permits the cables to be inserted easily in either direction
- Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device
- Compatible with Decora® wallplates and Decora Plus™ screwless wallplates
- Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
- No data transfer capability
- Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
- SMART – Built-in smart chip recognizes the individual device’s charging requirements to optimize the charge (Does not provide Power Delivery. See Leviton T5635 )
- POWERFUL - Two high-powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power
- CONVENIENT – No more searching for charging adapters! Upgrade so you can charge electronics leaving the outlets free for additional power needs
- THE FUTURE OF CHARGING – USB Type-C provides faster charging and is emerging as the standard port on many phones, tablets and laptops
- ENHANCED SAFETY – Built-in overcurrent protection helps protect electronics from receiving too much power, which can damage the device
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Material Specifications
| Body Material | Thermoplastic |
|---|---|
| Cover Material | Thermoplastic |
| Strap Material | Steel |
| Color | Light Almond |
|---|---|
| Grade | Commercial Specification Grade |
Mechanical Specifications
| Listed | cCSAus |
|---|---|
| Product ID | Stamped on Strap |
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Torque Range | 14 – 18 in.-lbs |
| NOM | 057 |
|---|---|
| Terminal Accom. | 14-12 AWG |
| Termination | Back & Side |
| Warranty | 2-Year Limited |
Product Features
| Brand | Decora |
|---|---|
| Product Type | Outlet/USB Combo |
| Wallplate | Not Included |

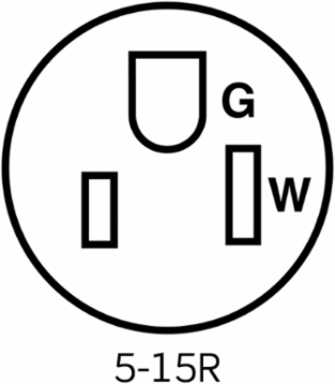

| NEMA | 5-15R |
|---|---|
| Type | Type A/C Duplex Receptacle |
Environmental Specifications
| Flammability | Rated V-0 per UL 94 |
|---|---|
| Product ID | Stamped on Strap |
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Torque Range | 14 – 18 in.-lbs |
| Operating Temperature | -10°C to 40°C |
|---|---|
| Terminal Accom. | 14-12 AWG |
| Termination | Back & Side |
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Color | Light Almond |
| Grounding | Grounding |
| Strap Material | Steel |
| Body Material | Thermoplastic |
|---|---|
| Cover Material | Thermoplastic |
| Horsepower Rating | 15A-1/2 HP |
| Voltage | 125 VAC |
Standards & Certifications
| FCC Part 15 | Class B |
|---|---|
| NOM | 057 |
| UL 498 | Yes |
| Listed | cCSAus |
|---|---|
| UL 1310 | Yes |
| Warranty | 2-Year Limited |
