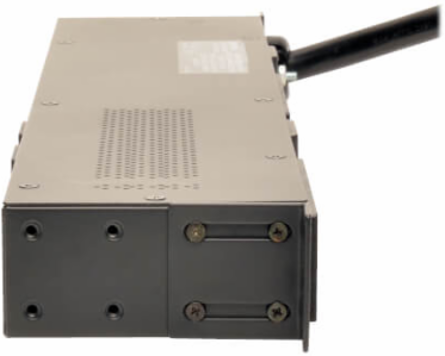

Tripp Lite PDUH30HV Basic Power Distribution Unit 5.8kW 30A 1U Rack-Mount with 10 C13 Outlets
- MPN: PDUH30HV
- UPC: 037332183217
- PPN: TRP-PDUH30HV
CAD
$784.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
5.8kW Single-Phase 200-240V Basic PDU, 10 C13 Outlets, NEMA L6-30P Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount
Features
- Mounting hardware
- Owner's manual
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 5.8 kW (240V), 5 kW (208V), 4.8 kW (200V) total capacity
- Overload Protection
- Two 20A breakers protect 5 outlets each; 20A max per breakered outlet bank; 12A max per C13 outlet
- Frequency
- 50/60 Hz
- Output Receptacles
- 10 C13 (8 front-facing, 2 rear-facing, reversible)
- Input Cord Length
- 12 ft
- Dimensions (H x W x D)
- 1.75 x 17.5 x 3.75 in
- Material
- Metal
- Relative Humidity
- 5-95% non-condensing
- Warranty
- 2-year limited
Maximum Input Amps30A max (agency de-rated to 24A)
Voltage200, 208, 240 V
PhaseSingle-Phase

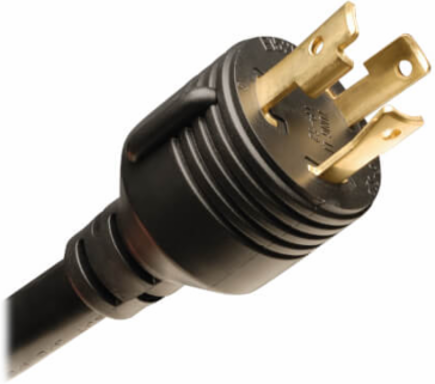

Input Plug TypeNEMA L6-30P
Mounting1U rackmount, 0U vertical mount, wallmount, under-counter
Weight7.8 lbs
Storage Temperature Range-30 C to +50 C (-22 F to +122 F)
ComplianceUL60950-1, CSA, RoHS
