Tripp Lite PDUMH20HVATNET 3.8kW Single-Phase Switched Automatic Transfer Switch PDU, 1U, 10 Outlets
- MPN: PDUMH20HVATNET
- UPC: 037332151506
- PPN: TRP-PDUMH20HVATNET
CAD
$2035.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
3.8kW Single-Phase Switched Automatic Transfer Switch PDU, 1U, 10 Outlets
Features
- Single phase 16/20A 200-240V Auto Transfer Switch / ATS PDU
- Enables redundant A/B power option for non-redundant network devices
- Built-in LX Platform Network Interface
- 1U horizontal rackmount; 10 outlets (8 C13 switched / 2 C19 unswitched)

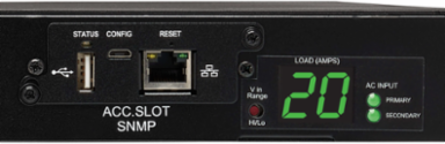

- Individually switched outlets, network interface and 2 digit visual current meter
- TAA Compliant
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 3.84 kW (240V), 3.68 kW (230V), 3.52 kW (220V), 3.33 kW (208V), 3.2 kW (200V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
- Input Voltage
- 200, 208, 220, 230, 240 V
- Frequency Compatibility
- 50 / 60 Hz
- PDU Plug Type

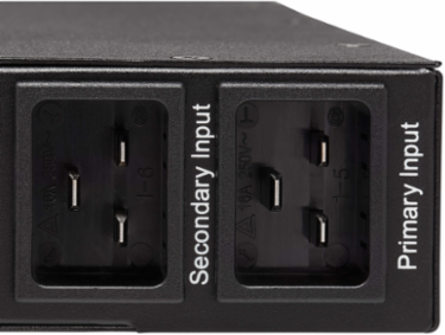

- (2) IEC-320 C20
- Power Transfer Time
- 2-7 milliseconds
- Unit Dimensions (HxWxD)
- 1.72 x 17.3 x 14.8 in (4.4 x 43.9 x 37.6 cm)
- Unit Weight
- 10.3 lbs (4.67 kg)
- Relative Humidity
- 5-95% non-condensing
- Material
- Metal
Maximum Input Amps20A, agency de-rated to 16A continuous
Input PhaseSingle-Phase
Output Receptacles8 individually switched C13, 2 C19 unswitched
Input Cord Length12 ft (3.7 m) each, set of two cords for separate primary and secondary power sources
Form FactorHorizontal 1U rackmount
Minimum Required Rack Depth18.3 in
Storage Temperature Range-30°C to +50°C (-22°F to +122°F)
Operating Elevation0-10,000 ft (0-3000 m)
CertificationsUL 60950, CE, Class A Emissions, NOM, RoHS, TAA Compliant
