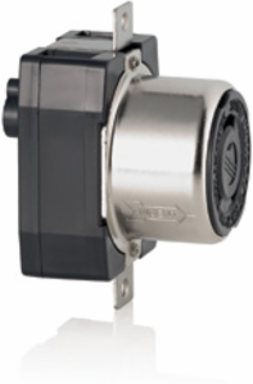

Leviton 3769 50 Amp Locking Flush Mount Receptacle, 250 Volt, Black & White, Industrial Grade
- MPN: 3769
- UPC: 078477804445
- PPN: LEV-3769
CAD
$192.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
50 Amp, 250 Volt DC/600 Volt AC, Non-NEMA, 3P, 4W, Black & White Locking Flush Mount Receptacle, Industrial Grade, Grounding - BLACK
Features
- One piece contacts reduce friction and overheating
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Ratings and NEMA I.D. permanently marked on device
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- RoHS
- Compliant
- UL Fed Spec WC-596
- File E13399
- Warranty
- Lifetime Limited
CSA C22.2 No. 42File 152105
NOM057
UL 498File E13399
UL498File E13399
Material Specifications
- Assembly Rivets
- SS 302/304
- Base Material
- Nylon
- Box Terminal
- 0.062inch thick Copper
- Color
- Black
- Connector Contact - Spring
- 0.041inch thick Brass
- Face Material
- Nylon
- Grounding Screw
- Brass
- Mounting Screws
- SS 302/304
- Shroud
- .062inch thick Nickel Plated Steel
- Terminal Set Screw
- SS 302/304
Back CoverReinforced Nylon
Body and Contract CarrierReinforced Nylon
Clamp NutsBrass
Connector Contact - Binding Plate0.100inch thick Brass
Contact RivetBrass
Face ModuleReinforced Nylon
Line ContactsBrass
Mounting StrapSingle piece SS 302/304
Terminal ScrewsBrass
YokeBrass
Mechanical Specifications
- Product ID
- Ratings and Catalogue No. molded into face
- Terminal ID

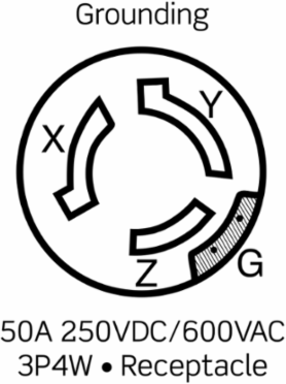

- X, W, Y, Z and Green for ground
Terminal Accom.#10min to #6max AWG Solid or Stranded Wire (Stranded Wire for Ground only)
Product Features
- Brand
- Black and White
- Standards and Certifications
- UL
- Termination
- Back & Side
Device TypeLocking Receptacle
Strap MaterialNickel-Plated Brass
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 75°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 50 A
- Current Limiting
- Full Rated Current
- Dielectric Voltage Withstand
- 2000V minimum per UL 498
- Maximum Working Voltage
- 250V DC/600V AC as rated
- Temperature Rise
- Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
- Wire
- 4
Current InterruptingCertified for current interrupting at full rated current
Dielectric VoltageWithstands 2000V per UL498
GroundingGrounding
Pole3
Voltage250 VAC
