Leviton CS8369 50 Amp 250 Volt Black & White Locking Flush Mount Receptacle, 3-Phase, Industrial Grade
- MPN: CS8369
- UPC: 078477326411
- PPN: LEV-CS8369
CAD
$204.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
50Amp, 3-Phase 250V AC, Non-NEMA, 3P, 4W, Black & White Locking Flush Mount Receptacle, Industrial Grade, Grounding, California-Style(CS) – BLACK
Features
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- 10-year limited warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- CSA C22.2 No. 42
- File 152105
- RoHS
- Compliant
- Warranty
- Limited Lifetime Warranty
NOM057
UL 498File E13399
Material Specifications
- Assembly Rivets
- SS 302/304
- Body and Contract Carrier
- Flame-retardant Nylon
- Center Pin
- SS 302/304
- Compression Nut, Strain Relief
- 0.100-inch thick Brass
- Connector Contact - Spring
- 0.041-inch thick Brass
- Face Module
- Flame-retardant Nylon
- Mounting Strap
- Single piece SS 302/304
- Terminal Block
- 0.062-inch thick Copper
Back CoverFlame-retardant Nylon
Box Terminal0.062inch thick Copper
ColorBlack
Connector Contact - Binding Plate0.100-inch thick Brass
Contact RivetBrass
Mounting ScrewsSS 302/304
Shroud.062-inch thick Nickel Plated Steel
Terminal Set ScrewSS 302/304
Mechanical Specifications
- Product ID
- Ratings and Catalogue No. molded into face

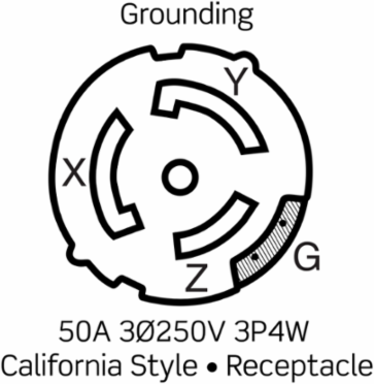

- Terminal ID
- X, W, Y, and Green for ground
Terminal Accom.AWG #10 to #6 for Ground (stranded only), and AWG #10 to #4 for line terminals
Product Features
- Brand
- Black and White
- NEMA
- Non-NEMA
Device TypeLocking Receptacle
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 75°C
FlammabilityUL94 V-0
Electrical Specifications
- Amperage
- 50 A
- Dielectric Voltage Withstand
- 2000V minimum per UL 498
- Maximum Working Voltage
- 3-Phase 250V as rated
- Pole
- 3
- Voltage
- 250 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Phase3-Phase
Temperature RiseMax 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
Wire4
