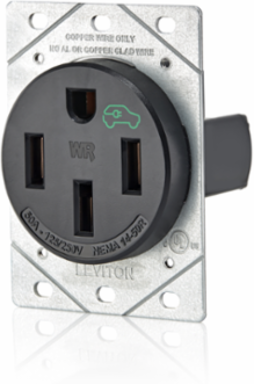

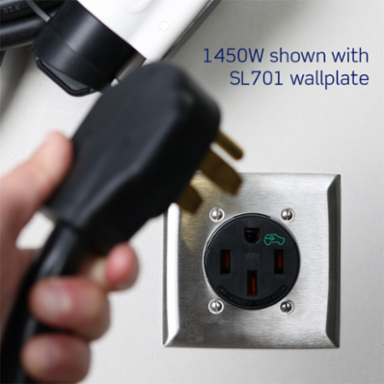

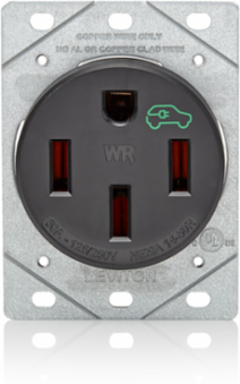

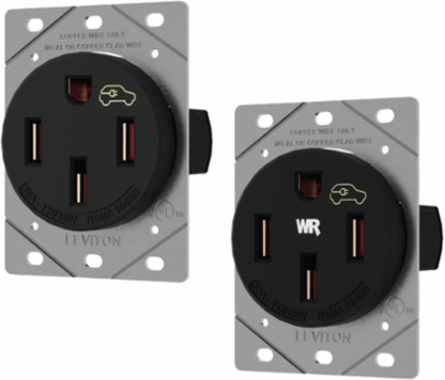

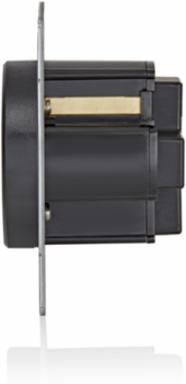

Leviton 1450W 50 Amp EV Charging Receptacle/Outlet, Heavy Duty, Weather-Resistant
- MPN: 1450W
- UPC: 078477013359
- PPN: LEV-1450W
CAD
$128.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
50 Amp, 125/250 Volt, NEMA 14-50R, 3-Pole, 4-Wire, Heavy Duty Flush Mount EV Charging Receptacle/Outlet, Straight Blade, Heavy-Duty/EV Grade, Weather-Resistant, Grounding, Side Wired, Steel Strap - Black
Features

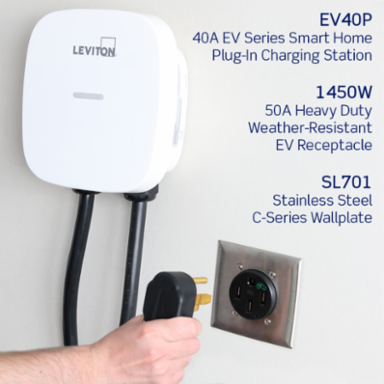

- Designed specifically for plug-in EV charging applications, Leviton's 1450R and 1450W power receptacles are built to outperform and outlast. With its robust design and performance, the 50A Heavy Duty Power Receptacle can sustain the necessary extended charge time and high frequency of insertions EV chargers require. This receptacle offers the perfect option for homeowners who prefer a plug-in application as opposed to a hardwire application and for future-focused new construction MDU projects that want to present an EV-ready environment.
- Weather-resistant for outdoor applications
- Built of durable, high-impact nylon
- Pressure-wire terminal connections ensures full-contact with the conductors
- Features heavy-gauge, high-performance copper contacts
- Accurate, efficient wiring with terminal IDs marked
- High torque value to ensure proper connection: terminals require 75 in lbs
- Must be installed in a 2-gang outdoor box and must use code compliant weatherproof cover
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantTrue
Standards and Certifications
- cULus
- cULus
Material Specifications
- Face Material
- Nylon
- Strap Material
- Heavy Gauge Galvanized Steel
Product IDRatings are permanently marked on device
Product Features
- Application
- Home
Device TypeReceptacle/Outlet
Warranty
- Warranty
- 2-Year Limited
Electrical Specifications
- Amperage
- 50 A
- Feature
- Weather-Resistant
- Grade
- Heavy-Duty/EV
- Operating Temperature
- -40°C to 60°C
- Terminal ID

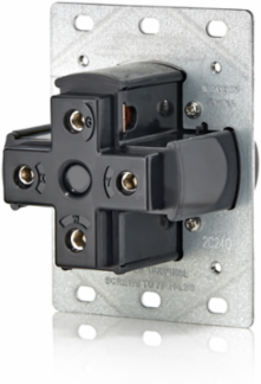

- X (Brass screw or Black screw) = Hot, Y (Brass screw or Black screw) = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground
- Voltage
- 125/250 VAC
- Wire Gauge
- For use with #4, #6 or #8 AWG copper wire ONLY. May use #10 AWG solid wire for ground connection. DO NOT use with copper-clad or aluminum wires on this device.
DeviceFlush Mounted Single Receptacle
FlammabilityRated HB or better UL94
GroundingGrounding
Pole3
Torque Range75 in-lbs.
Wire4
AC Horsepower Ratings
- At Rated Voltage
- 3 HP
