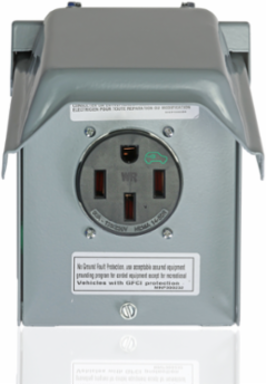

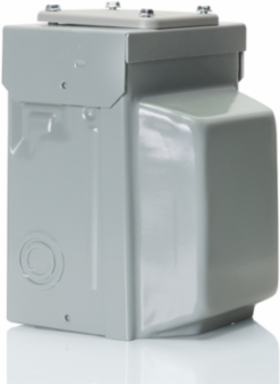

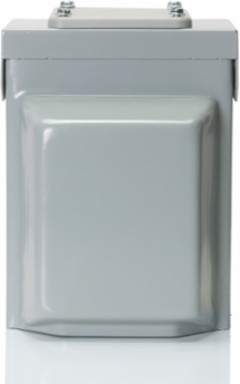

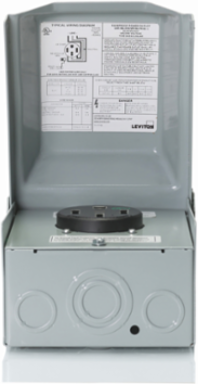

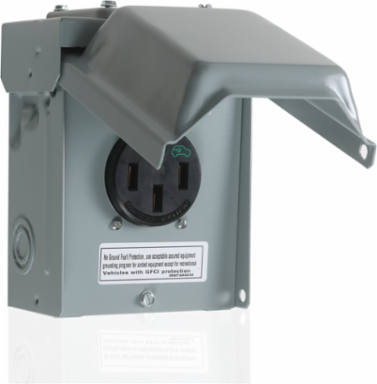

Leviton EVCVM-50 50A Weather-Resistant EV Charging Outlet with Outdoor Weatherproof Metal Cover, Surface Mount
- MPN: EVCVM-50
- UPC: 078477034897
- PPN: LEV-EVCVM-50
CAD
$121.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

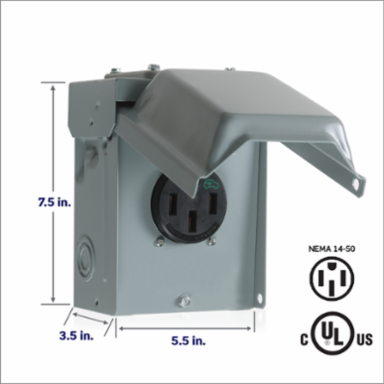

50 Amp, 125/250 Volt, NEMA 14-50R, 3-Pole, 4-Wire, Heavy Duty EV Charging Receptacle / Outlet, Straight Blade, Weather-Resistant, Pre-assembled Outlet and Outdoor, Weatherporoof Metal Cover, Surface Mount – Gray
Features

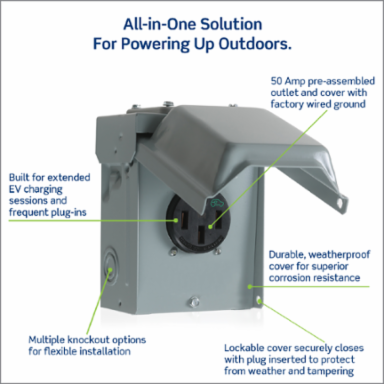

- All-in-One, Pre-Assembled Convenience: Includes a 50A Leviton 1450W outlet and durable outdoor cover with factory-wired ground.
- Code Compliant: Pre-assembled outlet with cover meets NEC 625.56 requirements for wet and damp locations, eliminating the need to purchase and install a separate cover.
- Purpose-Built for EV Charging: Designed specifically for EV plug-in chargers, while also supporting RVs, trailers, and other high-powered appliances for maximum flexibility.
- EV-Ready Performance: Built to handle extended charging sessions and frequent plug-ins, ideal for daily EV use and long-term reliability.

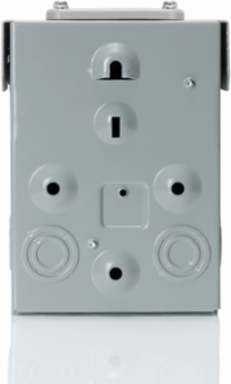

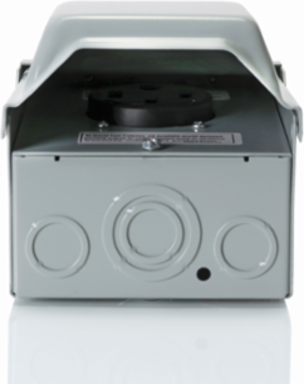

- Flexible Installation Options: Multiple knockouts on the cover make it easy to adapt to different mounting setups. Supports both wall and pedestal installations, making it suitable for a wide range of layouts and retrofit scenarios.
- Future-Proof & Homeowner-Friendly: A smart choice for homeowners who prefer plug-in over hardwired setups, and for builders creating EV-ready environments in multi-unit dwellings.

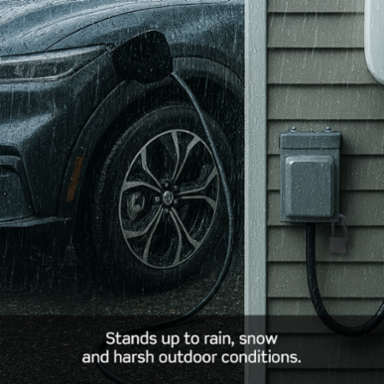

- Perfect for Outdoor Use: Stands up to rain, snow, and harsh conditions, perfect for any outdoor power needs..
- Built Tough with Galvanized Steel: Powder-coated steel construction with a welded flange and NEMA 3R rating ensures long-lasting durability and corrosion resistance.
- Secure & Safe by Design: While-in-use lockable cover and dead front design help prevent accidental contact and unauthorized access.
- CONVENIENT – All-in-one, pre-assembled outlet and cover code compliant solution with pre-wired ground.
- VERSATILE – Specifically designed for plug-in EV chargers. Flexible knockouts make installation flexible in a variety of setups.
- POWERFUL – Weather-Resistant EV Outlet engineered to handle the extended charge times and frequent plug-ins that EVs demand while delivering consistent, reliable power outdoors.
- DURABLE and WEATHERPROOF COVER – Crafted from galvanized steel with a welded flange and NEMA 3R rating for superior corrosion resistance that stands up to rain, snow, and other tough outdoor conditions..
- SAFE – While-in-use cover designed for continuous protection, the cover closes and locks securely even with a NEMA 14-50P EV charging plug inserted. Keeps your connection safe from weather and tampering during active use.

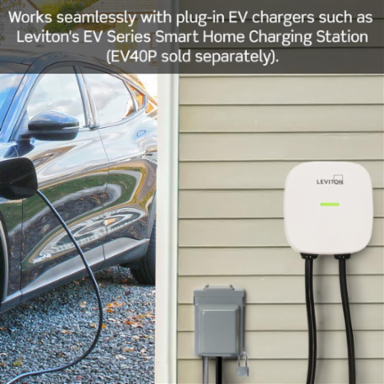

- COMPATIBLE – Works seamlessly with plug-in EV chargers such as Leviton's EV Series Smart Home Plug-In
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- Agency
- cULus
- NEMA
- 14-50R
Code CompliantNEMA 3R Rated, 2020 NEC 625.56
Material Specifications
- Cover
- G90 galvanized steel
Face MaterialNylon
Mechanical Specifications
- Terminal Accom.
- For use with #4, #6 or #8 AWG copper wire ONLY. May use #10 AWG solid wire for ground connection. DO NOT use with copper-clad or aluminum wires on this device.
- Termination
- Side-wired
Terminal IDX (Brass screw or Black screw) = Hot, Y (Brass screw or Black screw) = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground
Torque Range75 in-lbs.
Product Features
- Color
- Gray
- Feature
- Weather-Resistant
Device TypeWeather-Resistant Outlet / Weatherproof Cover
Warranty
- Warranty
- 1-Year Limited
Electrical Specifications
- Amperage
- 50A
- Grounding
- Grounding
- Pole
- 3
- Wire
- 4
GradeHeavy-Duty/EV
Operating Temperature-40°C to 60°C
Voltage125/250 VAC
