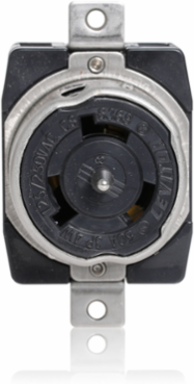

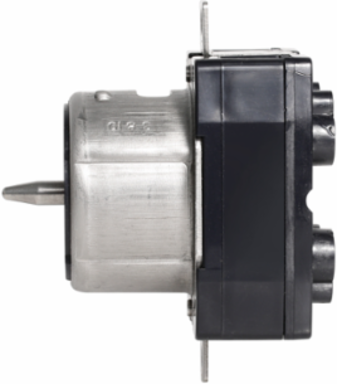

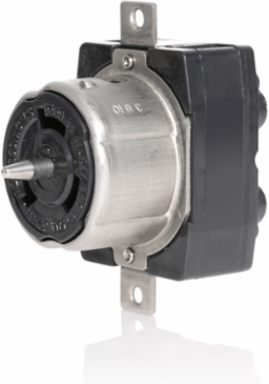

Leviton CS6369 50 Amp Locking Flush Mount Receptacle, 125/250 Volt, Rugged Nylon Construction

MPN: CS6369
UPC: 078477326282
PPN: LEV-CS6369

$201.05

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

50Amp, 125/250V AC, Non-NEMA, 3P, 4W, Black & White Locking Flush Mount Receptacle, Industrial Grade, Grounding, California-Style(CS) – BLACK

Features

Captive, quick drive assembly screws for faster assembly
Unique cord clamp accepts wide range of cord sizes
Rugged nylon construction resists impact, heat, chemicals, and rough use
10-year limited warranty

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

RoHS Compliant	True

Standards and Certifications

CSA C22.2 No. 42	File 152105
RoHS	Compliant
Warranty	Limited Lifetime Warranty

NOM	057
UL 498	File E13399

Material Specifications

Assembly Rivets	SS 302/304
Body Material	Impact Modified Nylon
Box Terminal	0.062inch thick Copper
Color	Black
Connector Contact - Spring	0.041inch thick Brass
Face Module	Reinforced Nylon
Mounting Strap	Single piece SS 302/304
Terminal Set Screw	SS 302/304

Back Cover	Reinforced Nylon
Body and Contract Carrier	Reinforced Nylon
Center Pin	SS 302/304
Connector Contact - Binding Plate	0.100inch thick Brass
Contact Rivet	Brass
Mounting Screws	SS 302/304
Shroud	.062inch thick Nickel Plated Steel

Mechanical Specifications

Product ID	Ratings and Catalogue No. molded into face

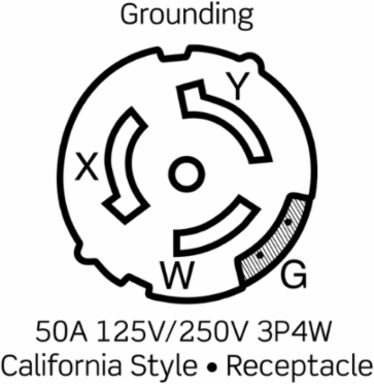

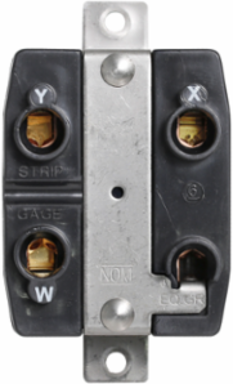

Terminal ID	X, W, Y, Z and Green for ground

Terminal Accom.	#10min to #6max AWG Solid or Stranded Wire (Stranded Wire for Ground only)

Product Features

Brand	Black and White
NEMA	Non-NEMA

Device Type	Locking Receptacle

Environmental Specifications

Environment	Dry
Operating Temperature	-40°C to 75°C

Flammability	Rated HB or better UL94

Electrical Specifications

Amperage	50 A
Dielectric Voltage Withstand	2000V minimum per UL 498
Maximum Working Voltage	125/250V as rated
Temperature Rise	Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
Wire	4
