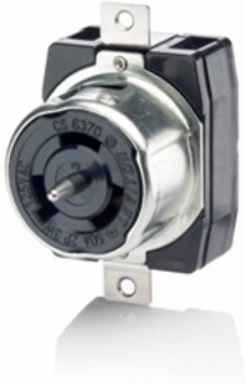

Leviton CS6370 50 Amp, 125 Volt, Black & White Locking Flush Mount Receptacle, Industrial Grade
Leviton CS6370 50 Amp, 125 Volt, Black & White Locking Flush Mount Receptacle, Industrial Grade
- MPN: CS6370
- UPC: 078477326039
- PPN: LEV-CS6370
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$183.57/ EA
Description

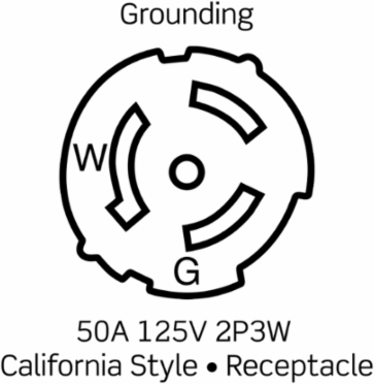

50Amp, 125V AC, Non-NEMA, 2P, 3W, Black & White Locking Flush Mount Receptacle, Industrial Grade, Grounding, California-Style(CS) – BLACK
Features
- One piece contacts reduce friction and overheating
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Ratings and NEMA I.D. permanently marked on device
- Industry exclusive limited lifetime warranty
Specifications
Standards and Certifications
- CSA C22.2 No. 42
- File 152105
- RoHS
- Compliant
- Warranty
- Lifetime Limited
NOM057
UL 498File E13399
Material Specifications
- Assembly Rivets
- SS 302/304
- Body and Contract Carrier
- Reinforced Nylon
- Center Pin
- SS 302/304
- Connector Contact - Binding Plate
- 0.100inch thick Brass
- Contact Rivet
- Brass
- Mounting Screws
- SS 302/304
- Shroud
- .062inch thick Nickel Plated Steel
Back CoverReinforced Nylon
Box Terminal0.062inch thick Copper
ColorBlack
Connector Contact - Spring0.041inch thick Brass
Face ModuleReinforced Nylon
Mounting StrapSingle piece SS 302/304
Terminal Set ScrewSS 302/304
Mechanical Specifications
- Product ID
- Ratings and Catalogue No. molded into face
- Terminal ID
- X, W, Y, Z and Green for ground
Terminal Accom.#10min to #6max AWG Solid or Stranded Wire (Stranded Wire for Ground only)
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Black and White
- NEMA
- Non-NEMA
Device TypeLocking Receptacle
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 75°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 50 A
- Dielectric Voltage Withstand
- 2000V minimum per UL 498
- Maximum Working Voltage
- 125V as rated
- Temperature Rise
- Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
- Wire
- 3
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Pole2
Voltage125 VAC
