Leviton CS8469 50 Amp Locking Flush Mount Receptacle, 480 Volt, Reinforced Nylon, Industrial Grade
- MPN: CS8469
- UPC: 078477326251
- PPN: LEV-CS8469
CAD
$181.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
50Amp, 480V AC, Non-NEMA, 2P, 3W, Black & White Locking Flush Mount Receptacle, Industrial Grade, Grounding, California-Style(CS) – BLACK
Features
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- CSA C22.2 No. 42
- File 152105
- RoHS
- Compliant
- Warranty
- Lifetime Limited
NOM057
UL 498File E13399
Material Specifications
- Assembly Rivets
- SS 302/304
- Body and Contract Carrier
- Reinforced Nylon
- Center Pin
- SS 302/304
- Connector Contact - Binding Plate
- 0.100inch thick Brass
- Contact Rivet
- Brass
- Mounting Screws
- SS 302/304
- Shroud
- .062inch thick Nickel Plated Steel
Back CoverReinforced Nylon
Box Terminal0.062inch thick Copper
ColorBlack
Connector Contact - Spring0.041inch thick Brass
Face ModuleReinforced Nylon
Mounting StrapSingle piece SS 302/304
Terminal Set ScrewSS 302/304
Mechanical Specifications
- Product ID
- Ratings and Catalogue No. molded into face

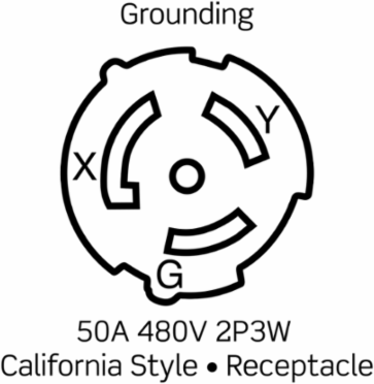

- Terminal ID
- X, W, Y, Z and Green for ground
Terminal Accom.#10min to #6max AWG Solid or Stranded Wire (Stranded Wire for Ground only)
Product Features
- Brand
- Black and White
- NEMA
- Non-NEMA
Device TypeLocking Receptacle
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 75°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 50 A
- Dielectric Voltage Withstand
- 2000V minimum per UL 498
- Maximum Working Voltage
- 480V as rated
- Temperature Rise
- Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
- Wire
- 3
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Pole2
Voltage480 VAC
