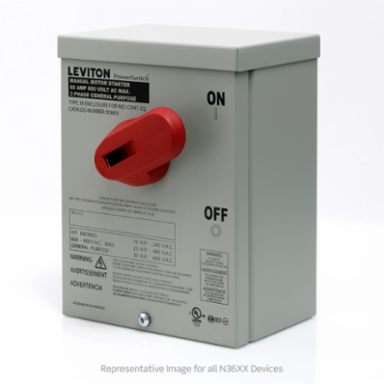

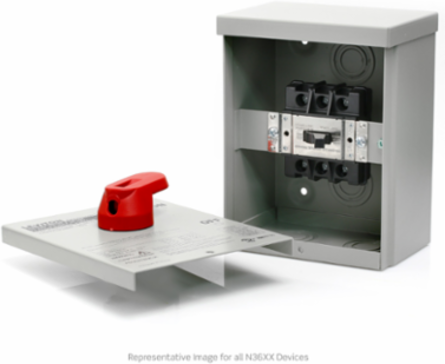

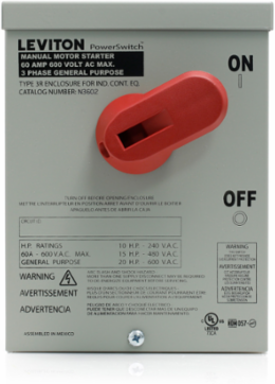

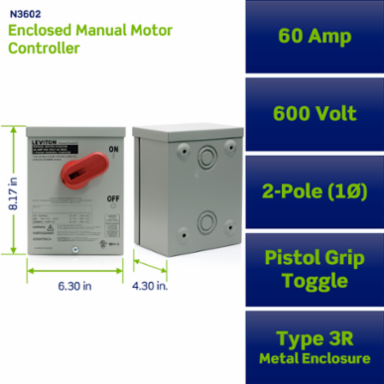

Leviton N3602 60 Amp, 600 Volt, 2-Pole, Non-Fused Manual Motor Controller

60 Amp, 600 Volt, 2-Pole, Non-Fused Manual Motor Controller
60 Amp, 600 Volt, 2-Pole, Non-Fused Manual Motor Controller
60 Amp, 600 Volt, 2-Pole, Non-Fused Manual Motor Controller
60 Amp, 600 Volt, 2-Pole, Non-Fused Manual Motor Controller
60 Amp, 600 Volt, 2-Pole, Non-Fused Manual Motor Controller
  • MPN: N3602
  • UPC: 078477101858
  • PPN: LEV-N3602

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$183.30/ EA

Description

60 Amp, 600 Volt, Toggle In Type 3R Enclosure Double-Pole AC Manual Motor Controller, Industrial Grade, Non-Grounding, Front Wired, - Gray

Features

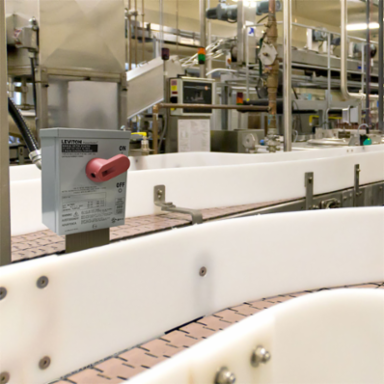

  • Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.

Specifications

Standards and Certifications

ANSI
C-73
NOM
NOM-ANCE
Warranty
10-Year Limited
NEMAWD-1 & WD-6
UL 60947-4-1supersedes UL 508
cUL per CSA C22.2 No. 111File #E63969

Material Specifications

Base Material
Thermoplastic Polyester

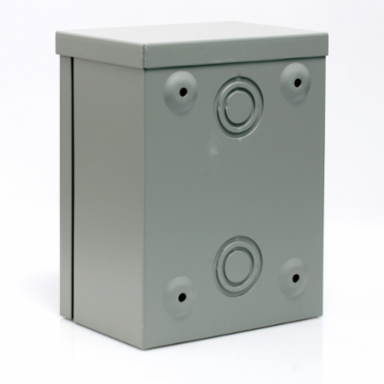

Enclosure Material
Powder-Coated Steel
Handle Material
Valox 357 PBT
Terminal Screws
Zinc-Plated Steel, Triple Combination
Yoke
Nickel-Plated Brass
Contacts.046" Thick Silver-Cadmium Oxide
Face MaterialThermoplastic Polyester
Strap MaterialNickel Plated Brass
ToggleThermoplastic Polyester

Mechanical Specifications

Product ID
Ratings are permenantly marked on device
Terminal ID
T1, T2, T3, L1, L2 & L3 marked on back of device
Torque Range
25 inch pounds maximum
Terminal Accom.10-4 AWG
TerminationFront

Specifications

Country of Origin
Mexico
RoHS CompliantFalse

Product Features

Color
Gray
Device TypeEnclosed Switch

Environmental Specifications

Enclosure Rating
Type 3R
Operating Temperature
-40°C to 60°C
FlammabilityRated V-0 per UL 94

Electrical Specifications

Amperage
60 A
Endurance
6,000 cycles inductive motor type load
Pole
2
Voltage
600 VAC
Dielectric VoltageWithstands 2200V for 1 min.
GroundingNon-Grounding
Temperature Rise50ºC Max at full rated current

AC Horsepower Ratings

HP Rating
10HP-240V 15HP-480V 20HP-600V
