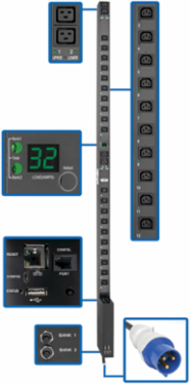

Tripp Lite PDUMV32HVNETLX 7.4kW Single-Phase Switched PDU with LX Platform Interface, 230V Output, IEC 309 32A Blue, 10 ft. Cord, 0U, TAA

7.4kW Single-Phase Switched PDU with LX Platform Interface, 230V Output, IEC 309 32A Blue, 10 ft. Cord, 0U, TAA - https://media.province-electric.com/tripplite/2020q1/a1278e7fec13d738f1aa71f1a925f17bf029778c-medium.png

7.4kW Single-Phase Switched PDU with LX Platform Interface, 230V Output, IEC 309 32A Blue, 10 ft. Cord, 0U, TAA

Tripp Lite PDUMV32HVNETLX 7.4kW Single-Phase Switched PDU with LX Platform Interface, 230V Output, IEC 309 32A Blue, 10 ft. Cord, 0U, TAA

MPN: PDUMV32HVNETLX
UPC: 037332202352
PPN: TRP-PDUMV32HVNETLX

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2069.34/ EA

Qty:

Loading add to cart quantity...

Description

7.4kW Single-Phase Switched PDU with LX Platform Interface, 230V Output, IEC 309 32A Blue, 10 ft. Cord, 0U, TAA

Features

20 C13 and 4 C19 230V outlets distribute clean power to connected rack equipment
Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
Remote power monitoring and control reduces on-site visits and maintenance costs

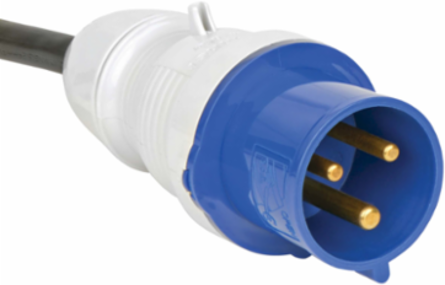

10 ft. power cord with IEC 309 32A Blue (2P+E) input connects to compatible AC source
Digital ammeter for on-site load monitoring helps prevent power overloads
2-year limited warranty
0U PDU Distributes, Monitors and Manages Network-Grade AC Power
24 Outlets Dispense Clean Power
Digital Load Meter Helps Prevent Potentially Expensive Overloads
Built-In LX Platform Network Management Card Allows Remote Access 24/7
Reduce Service Calls with Auto Probe Autonomous Device Management
Easy to Install Vertically in an EIA-Standard 19 in. Rack
TAA-Compliant for GSA Schedule Purchases
2-Year Warranty

Specifications

Certifications

Certifications: Tested to CE, IEC/EN60950, TAA Compliant

Physical

Form Factors Supported: 0U vertical rackmount. Includes mounting brackets. Supports toolless mounting in button-mount compatible racks

Shipping Dimensions (hwd / in.): 5.43 x 6.57 x 73.31

Unit Dimensions (hwd / in.): 69.92 x 2.2 x 4.25

PDU Form FactorVertical (0U)

Shipping Weight (lbs.)16.71

Unit Weight (lbs.)12.51

User Interface, Alerts & Controls

Front Panel LCD Display: Digital display reports output amps in 3 separately metered loading segments (BANK 1: Outlets #1-12; BANK 2: Outlets #13-24; BANK 3: All outlets combined)

Switches: Pushbutton control scrolls visual load meter display from bank 1, bank 2 and band 1&2 combined. LX Platform Interface: Recessed reset switch for interface reboot and factory reset

Front Panel LEDs24 power availability LEDs confirm power off/on status for each built-in outlet. Network Link/Activity Status LED (Yellow), Network Speed LED (Green); LX Platform status LED (Green)

Input

PDU Input Voltage: 230

Maximum Input Amps: 32.0

Input Phase: Single-Phase

Recommended Electrical Service32A 230V

PDU Plug TypeIEC-309 32A BLUE (2P+E)

Input Cord Length (ft.)10

Output

Frequency Compatibility: 50 / 60 Hz

Output Receptacles: (20) C13; (4) C19

Overload Protection: Two 20A circuit breakers protect 12 outlets each

Output Capacity Details7.7kW (240V), 7.4kW (230V), 7kW (220V), 6.7kW (208V), 6.4kW (200V) / 32A total capacity; 16A max per breakered outlet bank; 16A max per C19 outlet; 10A max per C13 outlet

Output Nominal Voltage230

Customized Load Management ReceptaclesEach outlet is individually controllable via remote interface

Communications

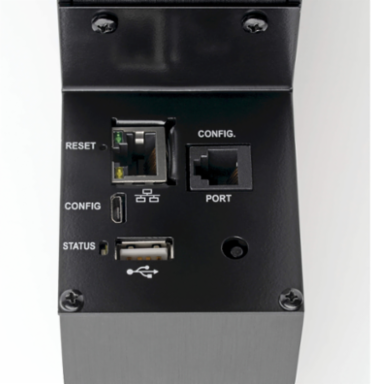

Network Monitoring Port: RJ45 Network port, RJ45 Config/Console Access port; USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.

SNMP CompatibilityPre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
