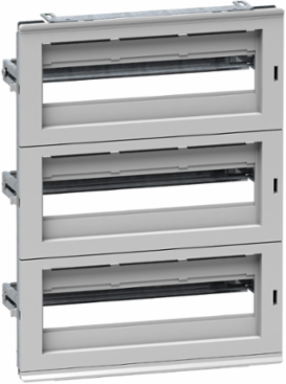

Schneider Electric NSYDLA48G Modular Distribution Chassis 48 Modules, 480 mm Height, 360 mm Width
- MPN: NSYDLA48G
- PPN: SCH-NSYDLA48G
CAD
$201.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility and efficiency, this modular distribution chassis accommodates up to 48 modules, making it an ideal choice for a variety of multi-purpose and modular distribution applications. With a robust construction featuring a self-extinguishing insulating front panel and a steel chassis, it ensures durability and safety in demanding environments. The chassis is compatible with multiple ranges including PanelSeT and Thalassa, and features three horizontal rows with adjustable height to suit different installation needs. Its sleek gray front panel (RAL 7035) adds a modern touch, while the careful design allows for easy mounting and accessibility within your enclosure setup.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 18.9 in
- Country of Origin
- Argentina, Spain, Indonesia, Philippines
Width14.17 in
Physical Attributes
- Color
- front panel Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- multi-purpose, modular distribution application
- Enclosure Nominal Dimensions
- -, -
- Local Data Status
- Publishable
- Return Indicator
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- DLA
- Fixing Mode
- by fixing element - on front with supports
- Number Of Cut Out
- 3 cut-outs
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Total Number Of 18 Mm Modules
- 48
- Accessory Separate Part Category
- mounting accessory
- Warranty In Months
- 18
- Height Nominal
- 480 mm
- Width Nominal
- 360 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 chassis structure, 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 3 front panels with 35 mm DIN rail
Materialfront panel self-extinguishing insulating, chassis structure and rails steel
Local Publishable Date2026-04-15
Stocking FlagY
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentin height from 40 to 85 mm DIN rail
Energy Efficiency OptimizedFalse
Mounting Locationfront of enclosure
Number Of Horizontal Rows3
Product Or Component Typechassis
RangePanelSeT
Sustainable PackagingNo
Type Of Front Plateplain and cut-out plates
Silicone FreeYes
Pep CodeENVPEP1107004EN
Height Useful480 mm
Width Real360 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Silicon Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1107004EN
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP1107004EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- chassis
ETIM
- ETIM 8
- EC000264
ETIM 9EC000264
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
