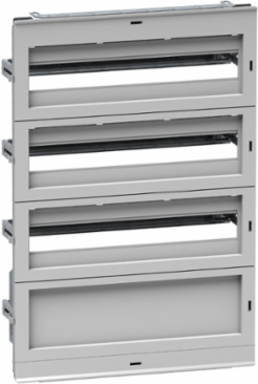

Schneider Electric NSYDLA66G Modular Distribution Chassis 66 Modules, 680 mm Height, Steel Construction
- MPN: NSYDLA66G
- PPN: SCH-NSYDLA66G
CAD
$281.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility and efficiency, this modular distribution chassis accommodates up to 66 modules, making it an ideal solution for various modular distribution applications. Crafted by Schneider Electric, it features a robust chassis structure made of steel and a self-extinguishing insulating front panel, ensuring both durability and safety. With adjustable height options from 40 to 85 mm for DIN rail mounting, this chassis is compatible with a range of panel systems, including PanelSeT and Thalassa, providing flexibility for different installation needs. The thoughtful design includes multiple cut-outs and a plain front plate, allowing for easy customization and access, making it a practical choice for any electrical distribution setup.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 26.77 in
- Country of Origin
- Spain, France, Indonesia, Philippines
Width18.11 in
Physical Attributes
- Color
- front panel Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- modular distribution application, multi-purpose
- Enclosure Nominal Dimensions
- -, -
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- DLA
- Fixing Mode
- by fixing element - on front with supports
- Number Of Horizontal Rows
- 4
- Product Or Component Type
- chassis
- Range
- PanelSeT
- Sustainable Packaging
- No
- Type Of Front Plate
- plain and cut-out plates
- Height Useful
- 680 mm
- Width Real
- 460 mm
- Number Of Cut-out
- 3 cut-outs
- Package Weight(Lbs)
- 6.828 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 chassis structure, 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 3 front panels with 35 mm DIN rail, 1 plain front panel with mounting plate
Materialfront panel self-extinguishing insulating, chassis structure and rails steel
Local Publishable Date2025-09-19
Stocking FlagY
Weee ScopeOut
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentin height from 40 to 85 mm DIN rail
Energy Efficiency OptimizedFalse
Mounting Locationfront of enclosure
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Total Number Of 18 Mm Modules66
Height Nominal680 mm
Width Nominal460 mm
Accessory / Separate Part Categorymounting accessory
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- chassis
ETIM
- ETIM 8
- EC001893
ETIM 9EC001893
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
