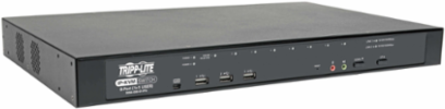

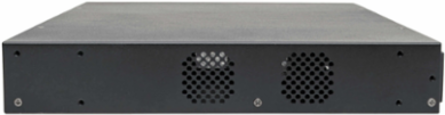

Tripp Lite B064-008-01-IPG 8-Port Cat5 KVM over IP Switch with Virtual Media - 1 Local & 1 Remote User, 1U Rack-Mount, TAA
Tripp Lite B064-008-01-IPG 8-Port Cat5 KVM over IP Switch with Virtual Media - 1 Local & 1 Remote User, 1U Rack-Mount, TAA
- MPN: B064-008-01-IPG
- UPC: 037332236326
- PPN: TRP-B064-008-01-IPG
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3542.18/ EA
Description
8-Port Cat5 KVM over IP Switch with Virtual Media - 1 Local & 1 Remote User, 1U Rack-Mount, TAA
Features
- Up to 2 users (1 local, 1 remote) can control up to 8 computers/servers simultaneously
- Virtual Media allows access to remote storage, including DVD/CD drives and flash drives
- Dual redundant C14 power inlets keep the unit running in case one power supply fails
- Dedicated LUC port connects directly to a laptop for easy console operation
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
- Control As Many As 8 Computers or Servers from Anywhere in the World
- All-in-One Network Management for Critical Systems
- Supports All Major Operating Systems and Most Web Browsers
- Simple Network Control That Gives You More Flexibility
- High-Resolution On-Screen Display Offers Multi-Language Support
- Allows Connection of Either PS/2 or USB Keyboard and Mouse
- Supports Both IPv4 and IPv6 Addresses
- Heightened Security of Every Connection
- Network-Wide Storage Media Access
- Energy-Efficient Operation Prolongs the KVM’s Lifespan
- Free Management Software Included
- TAA-Compliant for GSA Schedule Purchases
Specifications
Remote Access
- Modem Port
- Yes
Features & Specifications
- Autoscan (Y,N)
- Y
- Number of Users
- 2
- On-Screen Display (OSD)
- Yes
- Max Supported Video Resolution
- 1920 x 1200 @60 Hz
- Authentication Supported
- LDAP; LDAPS; RADIUS
- Recommended Category Cable
- Cat5/5e cables
Autoscan DurationUser-definable from 1 to 255 seconds; default of 5 seconds
NIAP-Certified SecureNo
Port SelectionGUI; Hotkey; OSD; Pushbutton
Driver RequiredNo
Cat5 KVM SwitchYes
TechnologyCat5/5e; PS/2; VGA/SVGA
Certifications
- Certifications
- Tested to FCC, RoHS, REACH
Port Expansion
- Max Distance (Between any 2 Units)
- 164ft (50m)
Max Number of Ports (Entire Chain)128
Connections
- Ports
- 8
- PC/Server Connections
- PS/2; USB; VGA
- Side A - Connector 2
- (2) 3.5MM (FEMALE)
- Side B - Connector 1
- (11) RJ45 (FEMALE)
- Console Monitor Interface
- HD15
Computer/Server Ports(x8) RJ45
Side A - Connector 1(3) USB A (FEMALE)
Side A - Connector 3USB MINI-B 5-PIN (FEMALE)
Console Keyboard and Mouse InterfacePS/2; USB
Physical
- Color
- Black
- Rackmountable
- Yes
- Unit Packaging Type
- Box
Material of ConstructionMetal
Unit Dimensions (hwd / in.)1.72 x 17.66 x 10.42
Unit Weight (lbs.)7.75
User Interface, Alerts & Controls
- LED Indicators
- PORT LEDS- GREEN (ONLINE), RED (SELECTED AND OFFLINE), ORANGE (SELECTED AND ONLINE); POWER 1 & 2 LEDS- BLUE; LINK 1 & 2 LEDS- RED (10MBPS), ORANGE (100MBPS), GREEN (1000MBPS)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
- Input Current
- 1A
- Redundancy - Dual Power Inputs
- Yes
Input Frequency50/60Hz
Power Input ReceptacleIEC-320-C14
Communications
- IP Remote Access
- Yes
Environmental
- Operating Temperature Range
- 32 to 122°F (0 to 50°C)
- Relative Humidity
- 0% - 80% RH, Non-Condensing
Storage Temperature Range-4 to 140°F (-20 to 60°C)
Overview
- UPC Code
- 037332236326
Max CPU8
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
