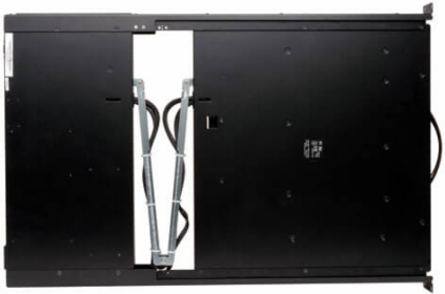

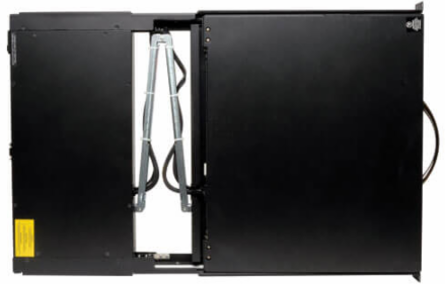

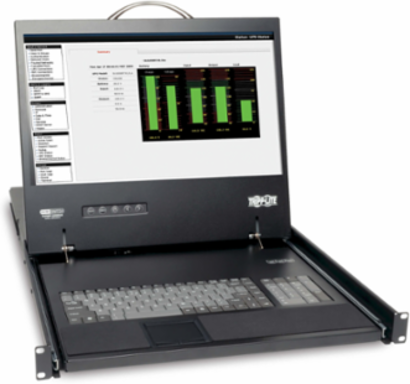

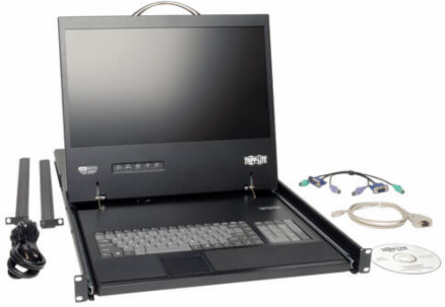

Tripp Lite B070-008-19 8-Port Cat5 Rack-Mount KVM Switch with 19 Inch LCD, Supports 1366 x 768 Resolution
- MPN: B070-008-19
- UPC: 037332154927
- PPN: TRP-B070-008-19
CAD
$3135.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control up to 8 computers with one Cat5 KVM switch with integrated console. This KVM switch is a smart solution for efficient server control that saves rack space and money. Low-cost Cat5 cabling lets you locate servers up to 100 ft. from switch.
Features
- Occupies just 1U of space in a rack-mountable drawer
- Low-cost Cat5 cabling allows longer distances, reduces cable clutter
- 19” LCD screen supports video resolutions up to 1366 x 768
- Simplifies IT tasks with easy switching between all 8 ports
- Expandable - Cascade a second level of KVM switches to control up to 128 servers from a single station using Tripp Lite's B072-008-1, B072-008-1A, B072-016-1 and/or B072-016-1A to increase the number of ports.
- TAA compliant for GSA Schedule purchases
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
| Ports | 8 |
|---|---|
| Max Supported Video Resolution | 1366 x 768 @ 60Hz |
| Input Frequency | 50/60Hz |
| Power Consumption | 30W (Line Mode), 5W (Standby Mode) |
| Storage Temperature Range | -40 to 158 F (-40 to 70 C) |
| Unit Dimensions (H x W x D) | 1.7 x 17.7 x 28.4 in |
| Rackmountable | Yes, 1U space |
| Construction | Heavy-duty steel housing |
| Port Selection | Hotkey, On-Screen Display (OSD) |
| Compliance | TAA, UL 60950-1, CAN/CSA, FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH |
| Color | Black |
| Log-Out | Two-level manual or automatic log-out |
| Warranty | 1-year limited |
| Max Number of Ports (Chain) | 128 |
|---|---|
| Voltage Compatibility | 100-240V AC, including 100;110;120;127;200;208;220;230;240V |
| Input Current | 120V (1.4A) / 230V (0.8A) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Relative Humidity | 0% to 80% RH, Non-Condensing |
| Weight | 31 lbs (14.06 kg) |
| Material | SECC Steel (Electrogalvanized, Cold rolled, Coil) |
| Computer Interface | PS/2, USB, VGA |
| Compatible Cable | Cat5e, Cat6, Cat6a |
| Console | Yes |
| Password Security | Multi-level with administrator, supervisor and user roles |
| Autoscan | Yes, variable duration |
