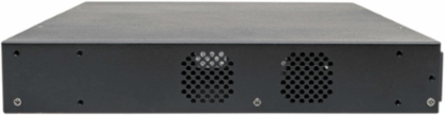

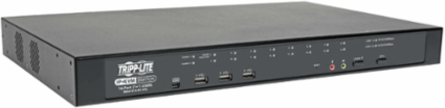

Tripp Lite B064-016-01-IPG 16-Port KVM over IP Switch, 1U Rack-Mount, Cat5, Dual User
- MPN: B064-016-01-IPG
- UPC: 037332236333
- PPN: TRP-B064-016-01-IPG
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
16-Port KVM over IP Switch, 1U Rack-Mount, Cat5, Dual User
Features
- Up to 2 users (1 local, 1 remote) can control up to 16 computers/servers simultaneously
- Virtual Media allows access to remote storage, including DVD/CD drives and flash drives
- Dual redundant C14 power inlets keep the unit running in case one power supply fails
- Dedicated LUC port connects directly to a laptop for easy console operation
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
- Control As Many As 16 Computers or Servers from Anywhere in the World
- All-in-One Network Management for Critical Systems
- Supports All Major Operating Systems and Most Web Browsers
- Simple Network Control That Gives You More Flexibility
- High-Resolution On-Screen Display Offers Multi-Language Support
- Allows Connection of Either PS/2 or USB Keyboard and Mouse
- Supports Both IPv4 and IPv6 Addresses
- Heightened Security of Every Connection
- Network-Wide Storage Media Access
- Energy-Efficient Operation Prolongs the KVM’s Lifespan
- Free Management Software Included
- TAA-Compliant for GSA Schedule Purchases
Documentation & Downloads
Specifications
Additional
- Ports
- 16 RJ45
- Voltage Compatibility
- 100 to 240 VAC (100;110;120;125;127;200;208;220;230;240)
- Input Frequency
- 50/60 Hz
- Redundancy
- Dual Power Inputs
- Max Number of Ports (Entire Chain)
- 256
- Operating Temperature Range
- 32 to 122 F (0 to 50 C)
- Relative Humidity
- 0% - 80% RH, Non-Condensing
- Unit Weight
- 7.75 lbs (3.52 kg)
- Material
- Metal
- Console Monitor Interface
- HD15
- Authentication Supported
- LDAP, LDAPS, RADIUS
- Certifications
- FCC, RoHS, REACH
- NIAP-Certified Secure
- No
- Port Selection
- GUI, Hotkey, OSD, Pushbutton
- Driver Required
- No
Users2 (1 local, 1 remote)
Input Current1A
Power Input ReceptacleIEC-320-C14
Max Supported Video Resolution1920 x 1200 @ 60 Hz
Max Distance Between Units164 ft (50 m)
Storage Temperature Range-4 to 140 F (-20 to 60 C)
Unit Dimensions (HxWxD)1.72 x 17.66 x 10.42 in
RackmountableYes, 1U
Console Keyboard and Mouse InterfacePS/2, USB
ConnectivityCat5/5e, PS/2, USB, VGA/SVGA
Modem PortYes
ComplianceTAA-Compliant
Number of Users2
AutoscanYes; duration 1 to 255 seconds; default 5 seconds
ColorBlack
