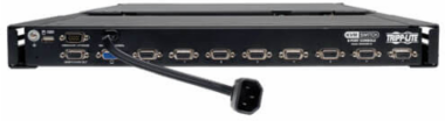

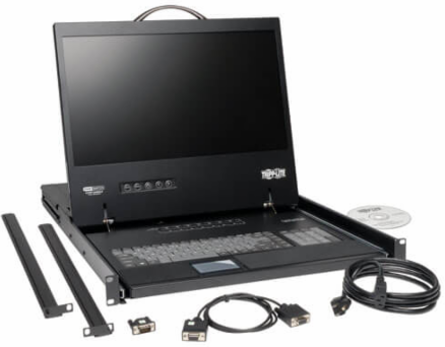

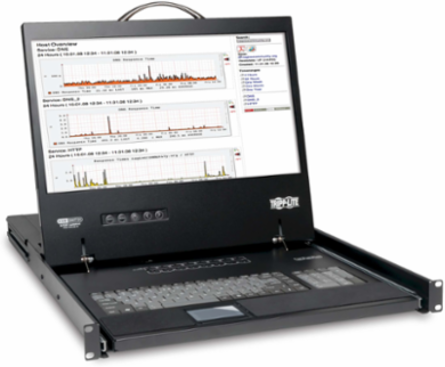

Tripp Lite B040-008-19 8-Port 1U Rack-Mount KVM Switch with 19 Inch LCD and 1366 x 768 Resolution
- MPN: B040-008-19
- UPC: 037332140296
- PPN: TRP-B040-008-19
CAD
$3386.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control up to 8 computers with a single KVM switch with integrated console, or increase the total connected computers to 248 by daisy-chaining. This KVM switch is a smart solution for space- and money-saving server control.
Features
- Occupies just 1U of space in rack-mountable drawer
- 19” LCD screen supports video resolutions up to 1366 x 768
- Simplifies IT tasks with easy switching between all 8 ports
- Password protection prevents unauthorized access
- Compatible with all major operating systems
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
| Max Supported Computers | 248 with daisy-chaining |
|---|---|
| Input Voltage Compatibility | 100, 110, 120, 127, 200, 208, 220, 230, 240 VAC |
| Input Current | 1.4A @ 120V, 0.8A @ 230V |
| BTU Output | 102 BTU/hr (line mode), 17.1 BTU/hr (standby mode) |
| Rackmount Size | 1U |
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Relative Humidity | 20% to 90%, Non-condensing |
| Unit Weight | 31.7 lbs (14.38 kg) |
| Power Input Receptacle | IEC-320-C14 |
| LCD Size | 19 in |
| Logout Feature | Two-level logout (manual or automatic) |
| USB Specification | USB 1.1 (up to 12 Mbps) |
| IP Remote Access | No (Optional with Tripp Lite B051-000) |
| Compliance | Federal Trade Agreements Act (TAA) |
| Color | Black |
| Max Number of Ports (Entire Chain) | 8 ports |
|---|---|
| Input Frequency | 50/60 Hz |
| Power Consumption | 30W (line mode), 5W (standby mode) |
| Max Video Resolution | 1366 x 768 @ 60Hz |
| Port Selection | Pushbutton, Hotkey, OSD |
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Unit Dimensions (H x W x D) | 1.7 x 17.7 x 28.4 in |
| Material | SECC Steel (Electrogalvanized, Cold rolled, Coil) |
| Computer Connections | PS/2, USB, VGA |
| Password Protection | Single-level password security |
| On-Screen Display | Yes |
| Number of Users | 1 |
| Certifications | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, NOM, RoHS, REACH |
| Warranty | 1-year limited warranty |
