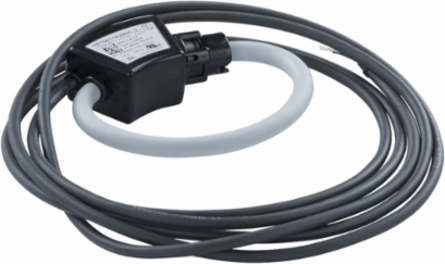

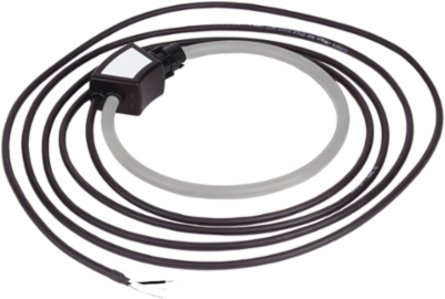

Schneider Electric METSECTR25500 PowerLogic Flexible Core Current Transducer 5000 A, 80 mm Diameter
Schneider Electric METSECTR25500 PowerLogic Flexible Core Current Transducer 5000 A, 80 mm Diameter
- MPN: METSECTR25500
- PPN: SCH-METSECTR25500
- UNSPSC: 83101808
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$247.94/ EA
Description
This flexible core current transducer, designed for retrofit installation, has a line rated current of 50A to 5000A. The coil can be wrapped around a maximum cable outer diameter of 80mm. Measurement accuracy plus or minus 1% from 50A to 5000A. A flying lead of 2.4 meters is available to connect the transducer to a meter. This product received the cURus certification, and is UL recognized.
Features
- Power metering rogowski coil
- Flexible core for easy retrofit installation
- Compatible with PowerLogic energy meters EM3500 and EM4200
- Compatible with iEM3000 rogowski version
Specifications
Conformance Attributes
- Product Certifications
- UL Recognized, cURus, CE
StandardsUL 61010-1, EN 61010-1, EN 61010-2-032, UL 61010-2-032, ANSI/IEEE C57.13
Important Information Attributes
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Serviceability
- No
- Legacy WEEE Scope
- In
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Diameter
- closed 80 mm
- Energy Efficiency Optimized
- False
- Measurement Accuracy
- 1 %
- Network Frequency
- 50 Hz
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PowerLogic
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Medium Desc
- PowerLogic - Ropestyle current tranformer - 5000 A - d=80 mm - lead=2.4 m
- Product Kit Identifier
- N
- Global Commercial Status
- End of commerc. announced
Local Publishable Date2026-02-14
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityNo
Scope PerimeterAt least in Europe
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Current Transformer Typeflexible core
Electrical Connectionflying lead 2.4 m600 V
Frequency Measurement Range50-1500 Hz
Measurement Current50-5000 A
Package Weight Lbs143.300 g
Product Or Component Typecurrent transducer
ReturnabilityYes
Thickness8 mm
Accessory Separate Part Category2measurement accessory
Stocking FlagY
Installation CategoryIV
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Compliant
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- -15-60 °C
- IP Degree Of Protection
- IP67
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 %
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-40-70 °C
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
General Attributes
- Product Or Component Type
- current transducer
Specifications
- Height
- 9.84 in
Country of OriginUnited States
