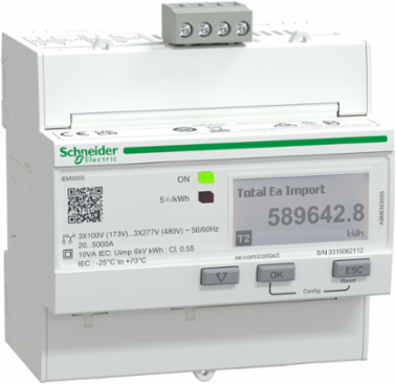

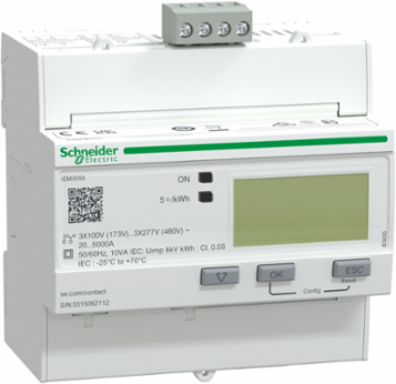

Schneider Electric A9MEM3555 iEM3555 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - Rogowski coil

iEM3555 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - Rogowski coil - https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/eb24c4d404dbac034743367437e164fce0f70c05-medium.png

iEM3555 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - Rogowski coil - https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/b8e01455c7861ebfc07d3016f46c29e6b23452a8-medium.png

iEM3555 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - Rogowski coil

MPN: A9MEM3555
PPN: SCH-A9MEM3555

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$545.57/ EA

Qty:

Loading add to cart quantity...

Description

iEM3555 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - Rogowski coil

Specifications

Communications & Management Attributes

Communication Port Protocol: Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none

Communication Port Supportscrew terminal block RS485

Physical Attributes

Wire Stripping Length: input/output circuit: 6 mm, voltage circuit: 8 mm, current circuit: 8 mm, communication: 7 mm

ColorWhite

Complementary Attributes

Maximum Value Measured: 99999999.9 kWh, 99999999 MWh

Rated Voltage100-277 V +/- 20 %, 173-480 V +/- 20 %

Important Information Attributes

Persona Type Ids: EU, LC, OM, OM8, PB, SC, SI

Market Segmentation Id: RESIDENTIAL, COMMERCIAL, INDUSTRIAL

Device Application: multi-tariff, partial meter, sub billing

Market Segment: buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: panelboard, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: panelboard, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: panelboard, data center cost management: cost allocation, healthcare cost management: cost allocation, industry cost management: cost allocationbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: panelboard, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing, healthcare cost management: billing, industry cost management: billing, buildings small building cost management: cost allocation: main incomer

Poles Description: 3P, 3P + N, 1P + N

Type Of Measurement: active and reactive energy, active and reactive power, current, voltage

Carbon Footprint Of The Distribution Phase A4: 0.7161917134288621, 0.7 kg CO2 eq.

Carbon Footprint Of The Installation Phase A5: 0 kg CO2 eq., 0.008963361357304049

Carbon Footprint Of The Use Phase B2 B3 B4 B6: 54 kg CO2 eq., 54.120371819354375

Other Technical Guide: https://download.schneider-electric.com/files?p_Doc_Ref=PLSED310049EN&p_File_name=PLSED310049EN_Web.pdf, PLSED310049EN

Local Publishable Date: 2025-12-17

Stocking Flag: N

Device Type: Relay, Control & Measurement - measuring, monitoring device

Traceability: Yes

Average Life Duration: 15 year(s)

Weee Product Category: 5

Eoli Availability Display: Yes

Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold

Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold

Rohs Eur Status: Compliant By Exemption

Rohs Eur Full Compliance Status: Compliant By Exemption

China Rohs Label: 7

Without Single Use Plastic: No

Tier Id: 1

Function Option Id: STANDARD

Product Kit Identifier: N

Device Short Name: iEM3555

Energy Efficiency Optimized: False

Measurement Current: 50-5000 A

Mounting Mode: clip-on

Product Availability: Stock - Normally stocked in distribution facility

Product Or Component Type: energy meter

Returnability: Yes

Software Version: v6.2.4

Technology Type: electronic

Weee Label: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Pep Code: ENVPEP1507016EN

Pep Verification Date: 2025-03-27

Psr Version: PSR-0005-ed3-2023 06 06

Data Source: extrapolated product

Functional-unit Quantity: 1

Reference Lifetime, In Y: 10

Energy Model - Installation [A5]: No energy used

Energy Model - End Of Life [C1-c4]: Global, European and French datasets are used.

Offer Owner Code: 190781

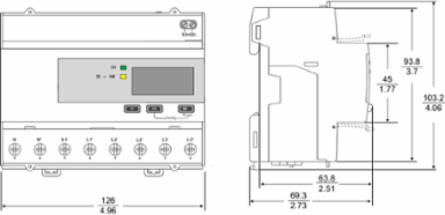

Height Nominal: 87 mm

Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator

Market SegmentationResidential, Commercial, Industrial

Local SignallingGreen indicator light power ON, Yellow flashing LED accuracy checking, alarm overload, Yellow indicator light communications are active on the Modbus port (Modbus)

Network Frequency50 Hz, 60 Hz

Tightening Torqueinput/output circuit: 0.5-0.5 N.m Philips screwdriver, voltage circuit: 0.5-0.5 N.m Philips screwdriver, current circuit: 0.8-0.8 N.m pozidriv screwdriver, communication: 0.5-0.5 N.m Philips screwdriver

Connections Terminalscurrent circuit screw terminals 6-6 mm², voltage circuit screw terminals 2.5-2.5 mm², input/output circuit screw terminals 1.5-1.5 mm², communication screw terminals 2.5-2.5 mm²

Carbon Footprint Of The End Of Life Phase C1 To C40.7279233466745828, 0.7 kg CO2 eq.

Carbon Footprint Of The Manufacturing Phase A1 To A313 kg CO2 eq., 13.17579256687252

Certificate AgencyCE IEC 61010-1 safety), CE EN 61557-12 power monitor), CE EN/IEC 61326-1 EMC), UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC), cULus UL 61010-1 safety), cULus EN 61010-1 safety), KZ, RCM

Local Data StatusPublishable

Return IndicatorY

Stock Policy2

ServiceabilityNo

Field Service DivisionDPIBS

Weee ScopeIn

Scope PerimeterAt least in Europe

End Of Life Doc RefENVEOLI1507016_V2

Reach Full Compliance Status IdCONTAINS_SVHC

Rohs Eur In ScopeYes

Rohs Eur Conformity Date0801

China Rohs In ScopeYes

With Recycled CardboardNo

Product Contributes To Saved And Avoided EmissionsNo

Tier1

Function OptionStandard

Compatibility CodeiEM3555

Display TypeLCD display

Information Displayedtariff 4)

Metering Typeactive, reactive, apparent energy (signed, four quadrant)

Mounting SupportDIN rail

Product NameActi9 iEM3000

RangeActi9

Sampling Rate32 samples/cycle

Sustainable PackagingNo

Total Lifecycle Carbon Footprint69 kg CO2 eq.

Warranty In Months18

Database Version2024-01

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent external review

Functional-unit DescriptionActi9 iEM34xx / iEM35xx series is a three-phase energy meter with an LCD display. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement during 10 years.

Functional-unit Unitunit

Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN

Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27

Recyclability Potential, In %5

Pn1

Width Nominal90 mm

Environment Attributes Main

Ambient Air Temperature For Operation: -25-70 °C - IEC, -25-70 °C - IEC-25-70 °C - IEC, -25-70 °C - IEC

Ip Degree Of Protection: IP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529

Take Back: No

China Rohs Regulation: X

Carbon Footprint: 68.74924280768765

Circularity Profile: ENVEOLI1507016_V2

Eu Rohs Directive: Compliant By Exemption

Packaging Without Single Use Plastic: No

Relative Humidity: 5-95 % 36-36 °C

Pep Verification Date: 2025-03-27

Psr Version: PSR-0005-ed3-2023 06 06

Ambient Air Temperature For Storage-40-85 °C, -40-85 °C

Operating Altitude< 9842.52 ft (3000 m), < 9842.52 ft (3000 m)

Recycled Metal Content At Cr Level0 %

Mercury FreeYes

9 Mm Pitches10

Environmental DisclosureENVPEP1507016EN

Packaging Made With Recycled CardboardNo

Reach RegulationReference contains Substances of Very High Concern above the threshold

Pep CodeENVPEP1507016EN

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Type: energy meter

ETIM

ETIM 8: EC001506

ETIM 9EC001506

Output Attributes

Number Of Outputs: 1 digital (static)

Output Voltage5...40 V DC@50 mA

Input Attributes

Analogue Input Type: Rogowski coil 50...5000 A

Number Of Inputs1 digital 0...5 V/11...40 V 24 V DC

Specifications

Country of Origin: Brazil, China, France, Latvia, Singapore, United States, ZZ

Depth69 mm
