Schmersal 103014823 Electronic Safety Sensor, 15 m Length, IP65 | IP67 | IP69K Protection
- MPN: 103014823
- PPN: SCM-103014823
CAD
$322.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Electronic Safety Sensor, 15 m Length, IP65 | IP67 | IP69K Protection
Features
- 15
- Pre-wired cable
- 8-pole
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 2 A
- Rated operating voltage
- 30 VDC
Rated operating voltage30 VAC
Operating current2,000 mA
Pin assignment
- PIN 1
- Brown
- PIN 3
- Blue
- PIN 5
- Grey
- PIN 7
- red
PIN 2White
PIN 4Black
PIN 6violet
PIN 8Pink

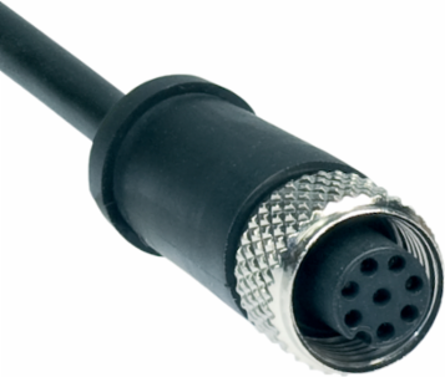

Mechanical data - connector side A
- Connector typ
- Female connector, M12
- Connector coding
- A
- Material of the gland
- Metal, V4A
- Colour of the handle
- Black
Designstraight
Connector latchingScrew locking
Material of the handlePlastic, TPU
General data - Features
- Cable drag chain suitable
- Yes (1)
Number of cable wires8
General data
- Standards
- EN IEC 61076-2-101
Gross weight750 g
Ambient conditions
- Degree of protection
- IP65 | IP67 | IP69K
- Ambient temperature (fixed)
- -30 ... +105 °C
Ambient temperature (Connector)-25 ... +90 °C
Ambient temperature (moved)-10 ... +105 °C
Mechanical data - Connection technique
- Length of cable
- 15 m
- Cable diameter
- 5.9 mm
- Bending radius (repeated)
- 10 x Ø-cable
- Material of the Cable mantle
- PVC
Wire cross-section0.21 mm
Bending radius (fixed)5 x Ø-cable
Colour of the Cable mantleBlack
Mechanical data
- Tightening torque, maximum
- 1 Nm
