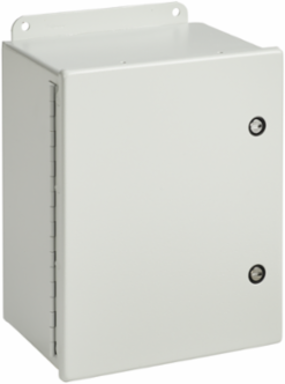

nVent Hoffman A10086CHFL Continuous Hinge with 1/4-Turn Latch 10.00x8.00x6.00 Inch Gray Steel
- MPN: A10086CHFL
- UPC: 783510148829
- PPN: HOF-A10086CHFL
- UNSPSC: 39121324
CAD
$272.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Type 4, 1/4-Turn Latch, Junction Boxes are ideal for housing and protecting electrical connections. This Continuous Hinge with 1/4-Turn Latch Type 4, A10086CHFL item measures 10.00x8.00x6.00 inches with a material of Steel colored Gray.
Features
- Type 4 rated for indoor dust and splash protection
- NEMA Type 12 and IP66 rated for environmental sealing
- Oil-resistant seamless foam-in-place gasket for reliable sealing
- Steel construction providing sturdy electrical protection
- Gray powder-coated finish for corrosion resistance
- Seams continuously welded and ground smooth
- Continuous hinge for smooth, durable door operation
- Quarter-turn latches for quick, tool-free access
- Two latches for secure enclosure closure
- External welded mounting brackets for easy installation
Documentation & Downloads
Specifications
Additional
- Size
- 10.00 x 8.00 x 6.00 in
- Material
- Steel
- Protection Rating
- NEMA Type 12, Indoor, dust-resistant
- Latch Quantity
- 2
- Gauge
- 14
- Height
- 254 mm
- Depth
- 152 mm
- Latch Type
- Quarter-turn slotted latches
- Mounting Brackets
- External welded-on
- Bonding Provision
- On door
Weight9.1 lb
FinishRAL 7035 gray polyester powder paint
IP RatingIP66
Thickness1.9 mm
Mounting (G x H)273 x 152 mm
Width203 mm
Hinge TypeContinuous hinge
GasketOil-resistant seamless foam-in-place
WeldnutsProvided for optional panels and terminal block kits 6.00 x 4.00 in and larger
ColorGray, RAL 7035
