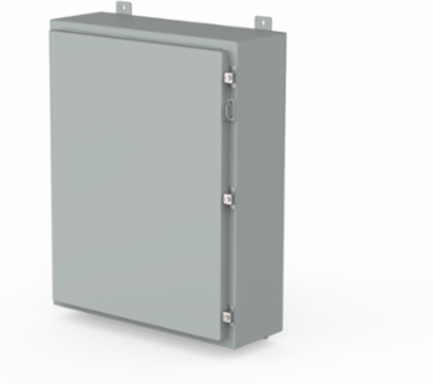

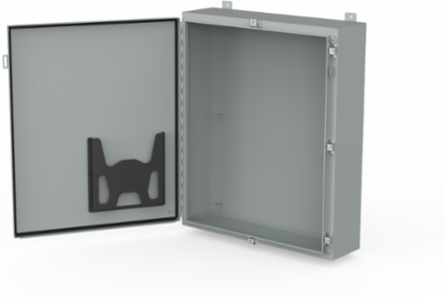

nVent Hoffman A242010LP Continuous Hinge Type 12 Enclosure 24 x 20 x 10 Inch, Gray, Steel, NEMA 12
- MPN: A242010LP
- UPC: 783510283902
- PPN: HOF-A242010LP
- UNSPSC: 39121324
CAD
$938.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single-door enclosure with universal rating up to Type-4; suitable for indoor and outdoor. All hardware is SS, the screw-down door clamps and heavy-gauge hinge pin. A242010LP measures 24x20x10 in from steel and painted ANSI 61 gray.
Features
- Seams continuously welded and ground smooth
- External, welded-on mounting brackets for wall-mounting
- Formed external return flanges around all sides of enclosure opening
- Stainless steel screw-down door clamps
- Removable door with continuous hinge featuring heavy-gauge stainless steel hinge pin
- Hasp and staple for padlocking
- High-impact thermoplastic data pocket
- Collar studs for mounting optional panels (sold separately)
- Bonding provision on door
- Seamless foam-in-place gasket
Documentation & Downloads
Specifications
Additional
- Dimensions
- 24.00 x 20.00 x 10.00 in
- IP Rating
- IP66
- Weight
- 49 lb
- Width
- 508 mm
- Thickness
- 1.9 mm
- Finish
- Powder Coated, ANSI 61 gray
- Hinge Type
- Continuous
- Hinge Pin Material
- Heavy-gauge stainless steel
- Mounting
- External welded-on brackets for wall-mounting
- Standards
- NEMA/EEMAC Type 12, 13, 3R, 4, UL 508A Listed, cUL Listed CSA C22.2 No. 94, IEC 60529
NEMA Rating12 Indoor, dust-resistant
Clamp Quantity3
Height610 mm
Depth254 mm
MaterialSteel
Data PocketSmall, High-impact thermoplastic
Door Clamps MaterialStainless steel
Gasket TypeSeamless foam-in-place
Enclosure TypeSingle-door
