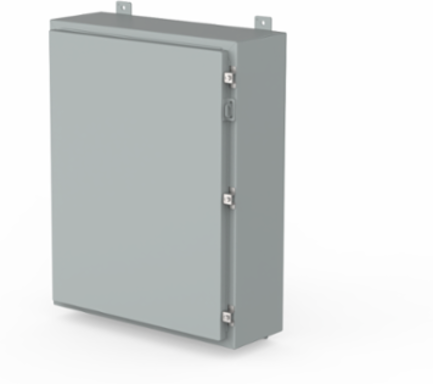

nVent Hoffman A202010LP Continuous Hinge Enclosure 20x20x10 Inch, NEMA Type 12, Gray Steel
- MPN: A202010LP
- UPC: 783510283704
- PPN: HOF-A202010LP
- UNSPSC: 39121324
CAD
$871.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

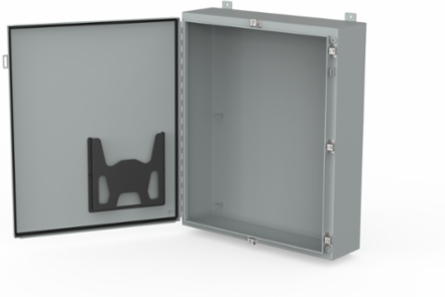

Single-door enclosure with universal rating up to Type-4; suitable for indoor and outdoor. All hardware is SS, the screw-down door clamps and heavy-gauge hinge pin. A202010LP measures 20x20x10 in from steel and painted ANSI 61 gray.
Features
- Seams continuously welded and ground smooth
- External, welded-on mounting brackets for wall-mounting
- Formed external return flanges around all sides of enclosure opening
- Stainless steel screw-down door clamps
- Removable door with continuous hinge featuring heavy-gauge stainless steel hinge pin
- Hasp and staple for padlocking
- High-impact thermoplastic data pocket
- Collar studs for mounting optional panels (sold separately)
- Bonding provision on door
- Seamless foam-in-place gasket
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 508
- Color
- Gray
- Protection Rating
- NEMA Type 12
- Thickness (T)
- 1.9
- Data Pocket
- Small
- Weight
- 41.1
- Size
- 20.00x20.00x10.00 in
Height (H)508
Depth (D)254
Color CodeANSI 61
FinishPowder Coated
Clamp Quantity2
IP RatingIP66
MaterialSteel
NEMA Rating12 Indoor, dust-resistant
