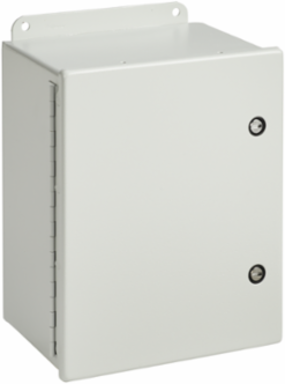

nVent Hoffman A806CHFL Continuous Hinge Type 4 with 1/4-Turn Latch, 8.00x6.00x3.50 Inch, Gray Steel
- MPN: A806CHFL
- UPC: 783510148768
- PPN: HOF-A806CHFL
- UNSPSC: 39121324
CAD
$204.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Type 4, 1/4-Turn Latch, Junction Boxes are ideal for housing and protecting electrical connections. This Continuous Hinge with 1/4-Turn Latch Type 4, A806CHFL item measures 8.00x6.00x3.50 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Bonding provision on door
- External welded-on mounting brackets for easy installation
- Oil-resistant gasket
- Quarter-turn slotted latches
- Seamless foam-in-place gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Documentation & Downloads
Specifications
Additional
- IP Rating
- IP66
- Latch Quantity
- 2
- Material
- Steel
- Size
- 8.00 x 6.00 x 3.50 in
- Width
- 152 mm
- Thickness
- 1.9 mm
- Continuous Hinge
- Yes
- Gasket Material
- Oil-resistant, Foam-in-place Seamless
- Mounting Brackets
- External welded-on
- Color
- Gray
NEMA Rating12 Indoor, dust-resistant
Latch Type1/4-Turn Slotted
FinishPowder Coated (Gray Polyester, RAL 7035)
Height203 mm
Depth89 mm
Weight5.1 lbs
SeamsContinuously welded and ground smooth
Bonding ProvisionOn Door
WeldnutsProvided for mounting optional panels and terminal block kits 6.00 x 4.00 in and larger
