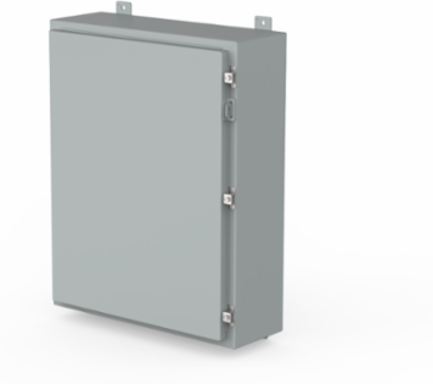

nVent Hoffman A423608LP Continuous Hinge Enclosure 42x36x8 Inch Type 12 Steel, Gray, NEMA 12
- MPN: A423608LP
- UPC: 783510283001
- PPN: HOF-A423608LP
- UNSPSC: 39121324
CAD
$1653.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

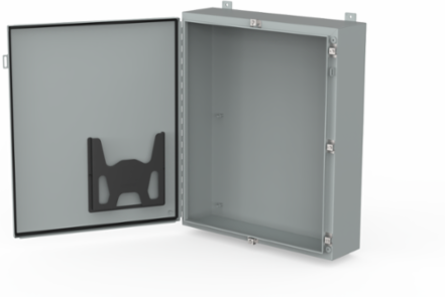

Single-door enclosure with universal rating up to Type-4; suitable for indoor and outdoor. All hardware is SS, the screw-down door clamps and heavy-gauge hinge pin. A423608LP measures 42x36x8 in from steel and painted ANSI 61 gray.
Features
- Seams continuously welded and ground smooth
- External, welded-on mounting brackets for wall-mounting
- Formed external return flanges around all sides of enclosure opening
- Stainless steel screw-down door clamps
- Removable door with continuous hinge featuring heavy-gauge stainless steel hinge pin
- Hasp and staple for padlocking
- High-impact thermoplastic data pocket
- Collar studs for mounting optional panels (sold separately)
- Bonding provision on door
- Seamless foam-in-place gasket
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 12, IP66
- Material
- Steel
- Weight
- 106 lb
- Clamp Quantity
- 6
- Data Pocket
- Large high-impact thermoplastic
- Hinge Pin Material
- Heavy-gauge stainless steel
- Mounting Brackets
- External welded-on
- Seams
- Continuously welded and ground smooth
- Collar Studs
- For mounting optional panels
Size42x36x8 in
FinishPowder Coated ANSI 61 gray
Thickness1.9 mm
ColorGray
Hardware MaterialStainless Steel
Door ClampsScrew-down stainless steel
GasketSeamless foam-in-place
Padlocking ProvisionHasp and staple
