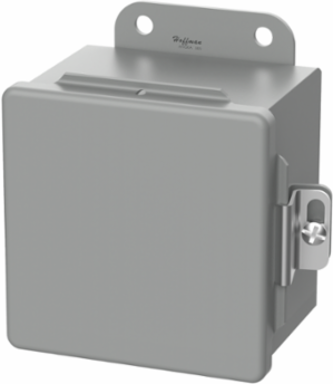

nVent Hoffman A1614CH Continuous Hinge Enclosure, 16x14x6 Inch, NEMA Type 12, Gray Mild Steel
- MPN: A1614CH
- UPC: 783510554408
- PPN: HOF-A1614CH
- UNSPSC: 39121303
CAD
$338.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Type 12 Junction Boxes with easy access are ideal for housing and protecting electrical connections. This Continuous Hinge Enclosure Clamps CH Type 12, A1614CH item measures 16x14x6 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Screw-down door clamps
- Bonding provision on door
- External wall-mounting brackets for easy installation
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 12 Indoor, dust-resistant
- Size
- 16.00 x 14.00 x 6.00 in
- Mounting (G x H)
- 425 x 305 mm
- Height (H)
- 406 mm
- Depth (D)
- 152 mm
- Material
- Steel, Mild Steel
- Color
- Gray, ANSI 61
- Door Clamps
- Screw-down door clamps
- Gasket Material
- Oil-resistant gasket
- Mounting
- External wall-mounting brackets
- cUL Listing
- CSA 22.2 No. 94
IP RatingIP65
Weight20.2 lb
Overall Dimensions (L x W)445 x 379 mm
Width (W)356 mm
Thickness (T)1.9 mm
FinishPowder Coated, ANSI 61 gray polyester powder paint
Hinge TypeContinuous hinge
SeamsContinuously welded and ground smooth
WeldnutsProvided for mounting optional panels and terminal block kits size 6.00 x 4.00 in and larger
UL ListingUL 50, 50E Listed; UL 508A Listed
NEMA Rating12 Indoor, dust-resistant
