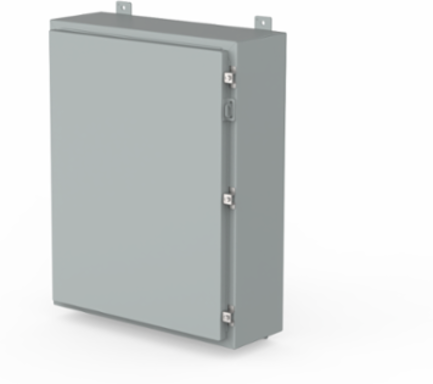

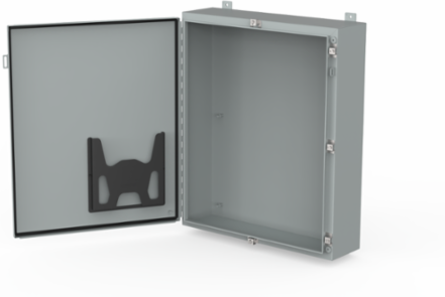

nVent Hoffman A723612LP Continuous Hinge Enclosure 72x36x12 Inch, NEMA 12, Gray Mild Steel
- MPN: A723612LP
- UPC: 783510278304
- PPN: HOF-A723612LP
- UNSPSC: 39121324
CAD
$2577.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single-door enclosure with universal rating up to Type-4; suitable for indoor and outdoor. All hardware is SS, the screw-down door clamps and heavy-gauge hinge pin. A723612LP measures 72x36x12 in from steel and painted ANSI 61 gray.
Features
- Seams continuously welded and ground smooth
- External, welded-on mounting brackets for wall-mounting
- Formed external return flanges around all sides of enclosure opening
- Stainless steel screw-down door clamps
- Removable door with continuous hinge featuring heavy-gauge stainless steel hinge pin
- Hasp and staple for padlocking
- High-impact thermoplastic data pocket
- Collar studs for mounting optional panels (sold separately)
- Bonding provision on door
- Seamless foam-in-place gasket
Documentation & Downloads
Specifications
Additional
- Size
- 72x36x12 in
- Depth
- 305 mm
- Weight
- 192.5 lbs
- Thickness
- 1.9 mm (14 gauge)
- NEMA Rating
- Type 12 Indoor, dust-resistant
- Data Pocket
- Large, High-impact thermoplastic
- Hinge
- Continuous hinge with heavy-gauge stainless steel hinge pin
- Mounting
- External welded-on brackets for wall-mounting
Width914 mm
Height1829 mm
MaterialSteel, Mild Steel
FinishPowder Coated, ANSI 61 gray
IP RatingIP66
Clamp Quantity7 stainless steel screw-down clamps
GasketSeamless foam-in-place
LockingHasp and staple for padlocking
