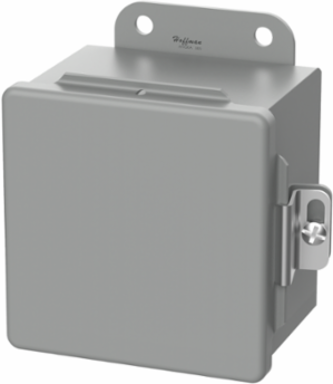

nVent Hoffman A1212CH Continuous Hinge Enclosure Clamp 12x12x6 Inch, NEMA Type 12, Gray Steel
- MPN: A1212CH
- UPC: 783510548902
- PPN: HOF-A1212CH
- UNSPSC: 39121303
CAD
$266.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Type 12 Junction Boxes with easy access are ideal for housing and protecting electrical connections. This Continuous Hinge Enclosure Clamps CH Type 12, A1212CH item measures 12x12x6 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Screw-down door clamps
- Bonding provision on door
- External wall-mounting brackets for easy installation
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 12 Indoor, dust-resistant
- Size
- 12.00 x 12.00 x 6.00 in
- Mounting Size
- 324 x 254 mm
- Height (H)
- 305 mm
- Thickness (T)
- 1.9 mm
- Finish
- Powder coated ANSI 61 gray polyester powder paint
- Weight
- 13.8 lb
- Hinge Type
- Continuous hinge
- Mounting
- External welded-on wall-mounting brackets
IP RatingIP65
Overall Dimensions (L x W)13.50 x 12.94 in
Depth (D)152 mm
Width (W)305 mm
MaterialSteel
ColorGray (ANSI 61)
GasketOil-resistant
Door ClampsScrew-down
