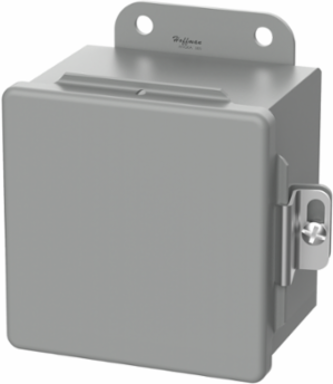

nVent Hoffman A6044CH Continuous Hinge Enclosure Clamp, 6 Inch x 4 Inch x 4 Inch, Gray Steel, NEMA Type 12
- MPN: A6044CH
- UPC: 783510553807
- PPN: HOF-A6044CH
- UNSPSC: 39121303
CAD
$123.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Type 12 Junction Boxes with easy access are ideal for housing and protecting electrical connections. This Continuous Hinge Enclosure Clamps CH Type 12, A6044CH item measures 6x4x4 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Screw-down door clamps
- Bonding provision on door
- External wall-mounting brackets for easy installation
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Documentation & Downloads
Specifications
Additional
- Size
- 6.00 x 4.00 x 4.00 in
- Material
- Steel
- Protection Rating
- NEMA Type 12, Indoor dust-resistant
- Color
- Gray
- Hinge Type
- Continuous hinge
- Gasket
- Oil-resistant gasket
- Weldnuts
- Provided for mounting optional panels and terminal block kits 6.00 x 4.00 in and larger
- Bonding Provision
- On door
- Color Code
- ANSI 61
- Depth (D)
- 102 mm
- Height (H)
- 152 mm
- Width (W)
- 102 mm
Weight2.8 lbs
FinishANSI 61 gray polyester powder paint
IP RatingIP65
Type12
ClosureScrew-down door clamps
Mounting BracketsExternal welded-on wall-mounting brackets
SeamsContinuously welded and ground smooth
Gauge16 gauge
Overall Dimensions (L x W)191 x 125 mm
Mounting (G x H)171 x 51 mm
Thickness (T)1.52 mm
