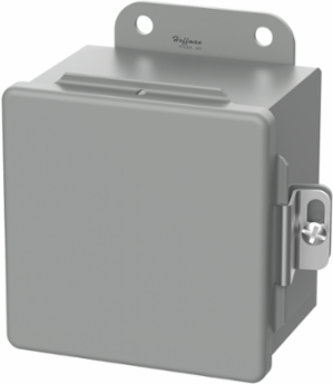

nVent Hoffman A808CH Continuous Hinge Enclosure Clamp, 8x8x4 Inch, Gray, Steel, NEMA 12
- MPN: A808CH
- UPC: 783510548605
- PPN: HOF-A808CH
- UNSPSC: 39121303
CAD
$161.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Type 12 Junction Boxes with easy access are ideal for housing and protecting electrical connections. This Continuous Hinge Enclosure Clamps CH Type 12, A808CH item measures 8x8x4 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Screw-down door clamps
- Bonding provision on door
- External wall-mounting brackets for easy installation
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Documentation & Downloads
Specifications
Additional
| Protection Rating | NEMA Type 12 Indoor, dust-resistant |
|---|---|
| Size | 8.00 x 8.00 x 4.00 in |
| Width (W) | 203 mm |
| Thickness (T) | 1.9 mm |
| Material | Steel |
| Color | Gray |
| Hinge | Continuous hinge |
| Gasket | Oil-resistant |
| Weldnuts | Provided for mounting optional panels and terminal block kits 6.00 x 4.00 in and larger |
| IP Rating | IP65 |
|---|---|
| Height (H) | 203 mm |
| Depth (D) | 102 mm |
| Weight | 6.6 lb |
| Finish | ANSI 61 gray polyester powder paint |
| Type | Type 12 |
| Door Clamps | Screw-down |
| Mounting Brackets | External welded-on wall-mounting brackets |
| Standards Compliance | UL 50, 50E; cUL; CSA 22.2 No. 94; UL 508A; IEC 60529 |
