Documentation & Downloads

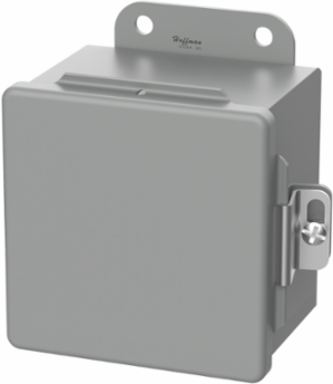

nVent Hoffman A8066CH Continuous Hinge Enclosure Clamp Type 12, 8x6x6 Inch, Gray Steel
- MPN: A8066CH
- UPC: 783510548506
- PPN: HOF-A8066CH
- UNSPSC: 39121303
CAD
$171.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Type 12 Junction Boxes with easy access are ideal for housing and protecting electrical connections. This Continuous Hinge Enclosure Clamps CH Type 12, A8066CH item measures 8x6x6 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Screw-down door clamps
- Bonding provision on door
- External wall-mounting brackets for easy installation
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 152
- Protection Rating
- NEMA Type 12
- Color Code
- ANSI 61
- Mounting (G x H)
- 222 x 102
- Weight
- 6.6
- NEMA Rating
- 12 Indoor, dust-resistant
- Size
- 8.00x6.00x6.00 in
Height (H)203
Depth (D)152
FinishPowder Coated
Thickness (T)1.9
Overall Dimensions (L x W)241 x 176
IP RatingIP65
MaterialSteel
ColorGray
