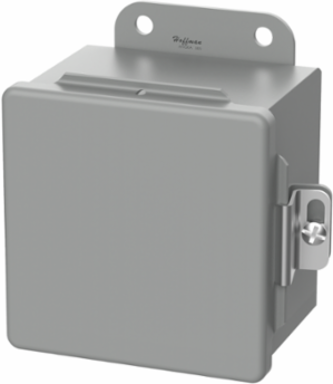

nVent Hoffman A16148CH Continuous Hinge Enclosure Clamps, 16x14x8 Inch, Gray Steel, NEMA Type 12
- MPN: A16148CH
- UPC: 783510549008
- PPN: HOF-A16148CH
- UNSPSC: 39121303
CAD
$371.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Type 12 Junction Boxes with easy access are ideal for housing and protecting electrical connections. This Continuous Hinge Enclosure Clamps CH Type 12, A16148CH item measures 16x14x8 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Screw-down door clamps
- Bonding provision on door
- External wall-mounting brackets for easy installation
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Documentation & Downloads
Specifications
Additional
- Size
- 16.00 x 14.00 x 8.00 in
- Finish
- ANSI 61 gray polyester powder paint
- Color
- Gray
- Construction
- Seams continuously welded and ground smooth
- Door Clamps
- Screw-down
- Mounting (G x H)
- 425 x 305 mm external welded-on wall-mounting brackets
- Weldnuts
- Provided for optional panels and terminal block kits 6.00 x 4.00 in (152 x 102 mm) and larger
- Weight
- 22.6 lb
- Depth (D)
- 203 mm
- Overall Dimensions (L x W)
- 445 x 379 mm
- NEMA Rating
- 12 Indoor, dust-resistant
MaterialSteel
Protection RatingNEMA Type 12 Indoor, dust-resistant
Thickness (T)1.9 mm (14 gauge)
HingeContinuous hinge
Bonding ProvisionOn door
GasketOil-resistant
IP RatingIP65
Width (W)356 mm
Height (H)406 mm
Color CodeANSI 61
