Mersen A30QS10-1 Amp-Trap A30QS 300VAC 300VDC
- MPN: A30QS10-1
- UPC: 782001311889
- PPN: FER-K230009
CAD
$38.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

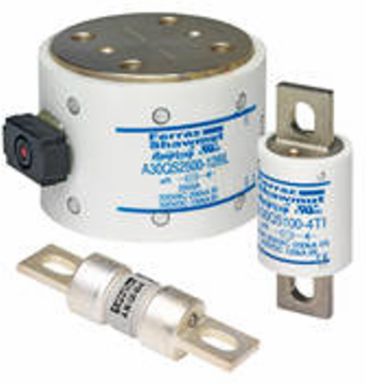

A30QS Amp-trap Semiconductor Protection fuses are intended for the protection of Power Semiconductors such as Diodes, Phase Control SCR's and other power Semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors
Features
- Choice of mounting types helps in equipment design
- 300VAC and 300VDC rated
- Controlled arc Voltage reduces stress to circuit components during fuse clearing.
- Low I 2 t minimizes damage to protected component on short circuit.
Specifications
Product Details
| Speed / Characteristic | High-Speed |
|---|---|
| Connection Terminal Type | Ferrule Blade |
| DC Voltage | 300 VDC |
| Body Style | Cylindrical Non Rejection Cylindrical With Blades Cylindrical Hockey Puck |
| Applications | Protection of AC/DC drives, UPS and other equipment of 300 volts or less |
| AC Voltage | 300 VAC |
| Ampere Range | 1 to 4500 A |
| I.R DC | 100 kA |
| Materials Contact | Tin-plated Brass Silver-Plated Copper Silver-Plated Brass |
| Standards | UL Recognized Component Guide JFHR2 Some Ratings RoHS Compliant |
|---|---|
| Body Material | Ceramic GMG |
| Mounting | Clip Bolted |
| UL Certification | E60314 JFHR2.E60314 |
| I.R. AC | 200 kA |
| CE conformity | Consult Technical Services |
| Lead Free | Consult Technical Services |
| ROHS Compliant | Consult Technical Services |
