Mersen A30QS35-4 Amp-Trap A30QS 300VAC 300VDC
- MPN: A30QS35-4
- UPC: 782001311940
- PPN: FER-R230015
CAD
$133.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

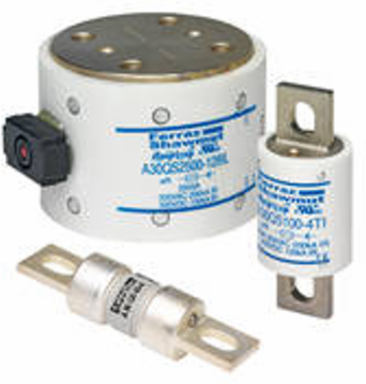

A30QS Amp-trap Semiconductor Protection fuses are intended for the protection of Power Semiconductors such as Diodes, Phase Control SCR's and other power Semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors
Features
- 300VAC and 300VDC rated
- Choice of mounting types helps in equipment design
- Low I 2 t minimizes damage to protected component on short circuit.
- Controlled arc Voltage reduces stress to circuit components during fuse clearing.
Specifications
Product Details
| AC Voltage | 300 VAC |
|---|---|
| Ampere Range | 1 to 4500 A |
| CE conformity | Consult Technical Services |
| DC Voltage | 300 VDC |
| I.R DC | 100 kA |
| Body Material | Ceramic GMG |
| Applications | Protection of AC/DC drives, UPS and other equipment of 300 volts or less |
| UL Certification | E60314 JFHR2.E60314 |
| Body Style | Cylindrical Non Rejection Cylindrical With Blades Cylindrical Hockey Puck |
| Lead Free | Consult Technical Services |
|---|---|
| Standards | UL Recognized Component Guide JFHR2 Some Ratings RoHS Compliant |
| Speed / Characteristic | High-Speed |
| ROHS Compliant | Consult Technical Services |
| Mounting | Clip Bolted |
| I.R. AC | 200 kA |
| Connection Terminal Type | Ferrule Blade |
| Materials Contact | Tin-plated Brass Silver-Plated Copper Silver-Plated Brass |
