Mersen A30QS6-1 Amp-Trap A30QS 300VAC 300VDC
- MPN: A30QS6-1
- UPC: 782001311841
- PPN: FER-F230005
CAD
$38.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

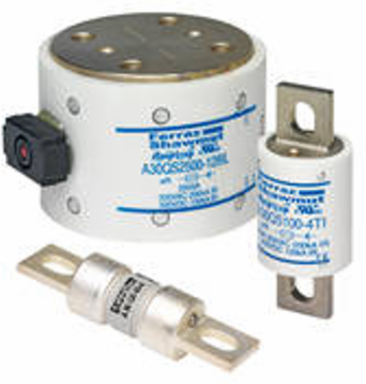

A30QS Amp-trap Semiconductor Protection fuses are intended for the protection of Power Semiconductors such as Diodes, Phase Control SCR's and other power Semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors
Features
- Choice of mounting types helps in equipment design
- 300VAC and 300VDC rated
- Low I 2 t minimizes damage to protected component on short circuit.
- Controlled arc Voltage reduces stress to circuit components during fuse clearing.
Specifications
Product Details
| DC Voltage | 300 VDC |
|---|---|
| I.R. AC | 200 kA |
| ROHS Compliant | Consult Technical Services |
| Applications | Protection of AC/DC drives, UPS and other equipment of 300 volts or less |
| Standards | UL Recognized Component Guide JFHR2 Some Ratings RoHS Compliant |
| Materials Contact | Tin-plated Brass Silver-Plated Copper Silver-Plated Brass |
| CE conformity | Consult Technical Services |
| Connection Terminal Type | Ferrule Blade |
| Ampere Range | 1 to 4500 A |
| UL Certification | E60314 JFHR2.E60314 |
|---|---|
| Body Material | Ceramic GMG |
| I.R DC | 100 kA |
| Lead Free | Consult Technical Services |
| Speed / Characteristic | High-Speed |
| AC Voltage | 300 VAC |
| Body Style | Cylindrical Non Rejection Cylindrical With Blades Cylindrical Hockey Puck |
| Mounting | Clip Bolted |
