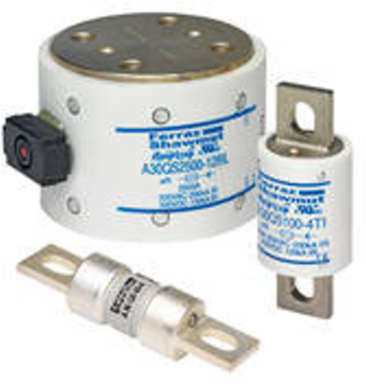

Mersen A30QS7-1 Amp-Trap A30QS 300VAC 300VDC
- MPN: A30QS7-1
- UPC: 782001311858
- PPN: FER-G230006
CAD
$38.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
A30QS Amp-trap Semiconductor Protection fuses are intended for the protection of Power Semiconductors such as Diodes, Phase Control SCR's and other power Semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors
Features
- Low I 2 t minimizes damage to protected component on short circuit.
- Choice of mounting types helps in equipment design
- Controlled arc Voltage reduces stress to circuit components during fuse clearing.
- 300VAC and 300VDC rated
Specifications
Product Details
| UL Certification | E60314 JFHR2.E60314 |
|---|---|
| Materials Contact | Tin-plated Brass Silver-Plated Copper Silver-Plated Brass |
| Body Material | Ceramic GMG |
| Standards | UL Recognized Component Guide JFHR2 Some Ratings RoHS Compliant |
| AC Voltage | 300 VAC |
| CE conformity | Consult Technical Services |
| I.R DC | 100 kA |
| Mounting | Clip Bolted |
| DC Voltage | 300 VDC |
| Ampere Range | 1 to 4500 A |
|---|---|
| Speed / Characteristic | High-Speed |
| Body Style | Cylindrical Non Rejection Cylindrical With Blades Cylindrical Hockey Puck |
| Lead Free | Consult Technical Services |
| ROHS Compliant | Consult Technical Services |
| Connection Terminal Type | Ferrule Blade |
| I.R. AC | 200 kA |
| Applications | Protection of AC/DC drives, UPS and other equipment of 300 volts or less |
