Mersen A30QS9-1 Amp-Trap A30QS 300VAC 300VDC
- MPN: A30QS9-1
- UPC: 782001311872
- PPN: FER-J230008
CAD
$38.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

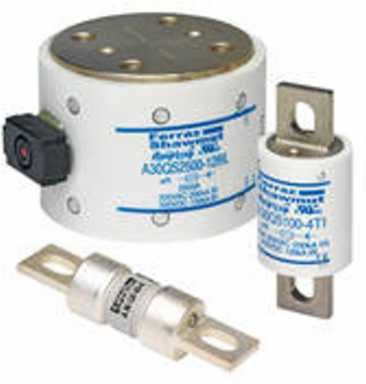

A30QS Amp-trap Semiconductor Protection fuses are intended for the protection of Power Semiconductors such as Diodes, Phase Control SCR's and other power Semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors
Features
- Low I 2 t minimizes damage to protected component on short circuit.
- Choice of mounting types helps in equipment design
- 300VAC and 300VDC rated
- Controlled arc Voltage reduces stress to circuit components during fuse clearing.
Specifications
Product Details
| Speed / Characteristic | High-Speed |
|---|---|
| I.R DC | 100 kA |
| DC Voltage | 300 VDC |
| CE conformity | Consult Technical Services |
| Ampere Range | 1 to 4500 A |
| Applications | Protection of AC/DC drives, UPS and other equipment of 300 volts or less |
| AC Voltage | 300 VAC |
| I.R. AC | 200 kA |
| Mounting | Clip Bolted |
| Standards | UL Recognized Component Guide JFHR2 Some Ratings RoHS Compliant |
|---|---|
| ROHS Compliant | Consult Technical Services |
| Body Style | Cylindrical Non Rejection Cylindrical With Blades Cylindrical Hockey Puck |
| UL Certification | E60314 JFHR2.E60314 |
| Lead Free | Consult Technical Services |
| Connection Terminal Type | Ferrule Blade |
| Materials Contact | Tin-plated Brass Silver-Plated Copper Silver-Plated Brass |
| Body Material | Ceramic GMG |
