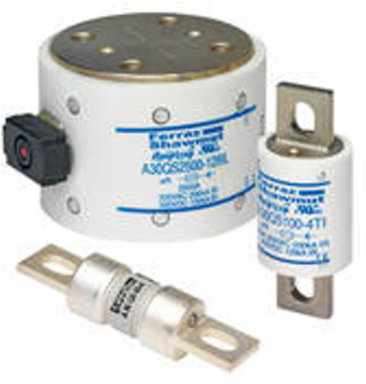

Mersen A30QS3-1 Amp-Trap A30QS 300VAC 300VDC
- MPN: A30QS3-1
- UPC: 782001311810
- PPN: FER-C230002
CAD
$38.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
A30QS Amp-trap Semiconductor Protection fuses are intended for the protection of Power Semiconductors such as Diodes, Phase Control SCR's and other power Semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors
Features
- Low I 2 t minimizes damage to protected component on short circuit.
- 300VAC and 300VDC rated
- Choice of mounting types helps in equipment design
- Controlled arc Voltage reduces stress to circuit components during fuse clearing.
Specifications
Product Details
| Connection Terminal Type | Ferrule Blade |
|---|---|
| Speed / Characteristic | High-Speed |
| Materials Contact | Tin-plated Brass Silver-Plated Copper Silver-Plated Brass |
| I.R DC | 100 kA |
| Lead Free | Consult Technical Services |
| UL Certification | E60314 JFHR2.E60314 |
| Body Style | Cylindrical Non Rejection Cylindrical With Blades Cylindrical Hockey Puck |
| Ampere Range | 1 to 4500 A |
| Applications | Protection of AC/DC drives, UPS and other equipment of 300 volts or less |
| Mounting | Clip Bolted |
|---|---|
| ROHS Compliant | Consult Technical Services |
| Body Material | Ceramic GMG |
| DC Voltage | 300 VDC |
| AC Voltage | 300 VAC |
| CE conformity | Consult Technical Services |
| Standards | UL Recognized Component Guide JFHR2 Some Ratings RoHS Compliant |
| I.R. AC | 200 kA |
