Mersen A30QS25-1 Amp-Trap A30QS 300VAC 300VDC
- MPN: A30QS25-1
- UPC: 782001311926
- PPN: FER-P230013
CAD
$38.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

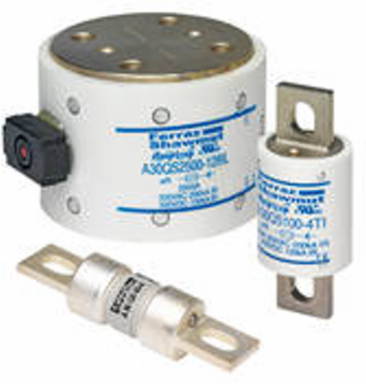

A30QS Amp-trap Semiconductor Protection fuses are intended for the protection of Power Semiconductors such as Diodes, Phase Control SCR's and other power Semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors
Features
- 300VAC and 300VDC rated
- Low I 2 t minimizes damage to protected component on short circuit.
- Controlled arc Voltage reduces stress to circuit components during fuse clearing.
- Choice of mounting types helps in equipment design
Specifications
Product Details
| UL Certification | E60314 JFHR2.E60314 |
|---|---|
| Ampere Range | 1 to 4500 A |
| Connection Terminal Type | Ferrule Blade |
| Applications | Protection of AC/DC drives, UPS and other equipment of 300 volts or less |
| AC Voltage | 300 VAC |
| Lead Free | Consult Technical Services |
| I.R. AC | 200 kA |
| ROHS Compliant | Consult Technical Services |
| Body Style | Cylindrical Non Rejection Cylindrical With Blades Cylindrical Hockey Puck |
| DC Voltage | 300 VDC |
|---|---|
| Mounting | Clip Bolted |
| CE conformity | Consult Technical Services |
| I.R DC | 100 kA |
| Materials Contact | Tin-plated Brass Silver-Plated Copper Silver-Plated Brass |
| Speed / Characteristic | High-Speed |
| Standards | UL Recognized Component Guide JFHR2 Some Ratings RoHS Compliant |
| Body Material | Ceramic GMG |
