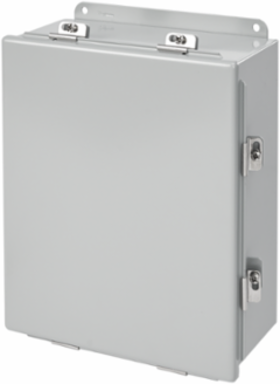

nVent Hoffman A404CHNF Continuous Hinge Enclosure Type 4, 4 x 4 x 3 Inch, Gray, Mild Steel
- MPN: A404CHNF
- UPC: 783510556907
- PPN: HOF-A404CHNF
- UNSPSC: 39121303
CAD
$154.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Type 4 Junction Boxes with easy access are ideal for housing and protecting electrical connections. This Continuous Hinge Enclosure with Clamps Type 4, A404CHNF item measures 4x4x3 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Stainless steel screw-down clamps on three sides of door
- Continuous hinge
- Stainless steel hinge pin
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
- Bonding provision on door
- External wall-mounting brackets for easy installation
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 102 |
| Protection Rating | NEMA Type 12 |
| Color Code | ANSI 61 |
| Mounting (G x H) | 121 x 51 |
| IP Rating | IP66 |
| Weight | 2 |
| Size | 4.00x4.00x3.00 in |
| Height (H) | 102 |
|---|---|
| Depth (D) | 76 |
| Finish | Powder Coated |
| Thickness (T) | 1.52 |
| Overall Dimensions (L x W) | 140 x 125 |
| NEMA Rating | 12 Indoor, dust-resistant |
| Material | Steel |
| Color | Gray |
